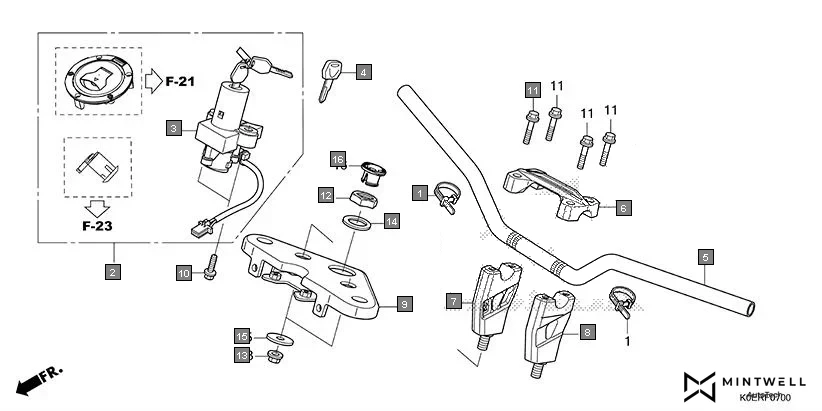

F-7 - HANDLE PIPE/TOP BRIDGE
HONDA SP160 CBF160FSR · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32161-KSP-920 | BAND B1, WIRE | 2 | |
| 2 | 35010-K0E-DF0 | KEY SET | 1 | |
| 3 | 35100-K0E-DF1 | SWITCH ASSY., COMBINATION & | 1 | |
| 4 | 35121-KPP-N01 | KEY, BLANK | 1 | |
| 5 | 53100-K0E-D00ZA | PIPE, STEERING HANDLE *NH1* BLACK | 1 | |
| 6 | 53131-K0E-D00ZA | HOLDER, HANDLE UPPER *NH105* MAT BLACK(#15-#20) | 1 | |
| 7 | 53132-K0E-D00ZA | HOLDER, R. HANDLE LOWER *NH105* MAT BLACK(#15-#20) | 1 | |
| 8 | 53142-K0E-D00ZA | HOLDER, L. HANDLE LOWER *NH105* MAT BLACK(#15-#20) | 1 | |
| 9 | 53230-K0E-D00 | BRIDGE COMP., FORK TOP | 1 | |
| 10 | 90100-KYJ-710 | BOLT, COMBINATION SWITCH SETTING | 2 | |
| 11 | 90111-362-000 | BOLT, FLANGE, 8X36 | 4 | |
| 12 | 90304-K0N-D80 | NUT, STEERING STEM | 1 | |
| 13 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 2 | |
| 14 | 90503-K74-N00 | WASHER, STEERING STEM | 1 | |
| 15 | 90521-427-770 | WASHER 10.3 MM | 2 | |
| 16 | 53232-K43-D00 | CAP, STEERING NUT | 1 | |
