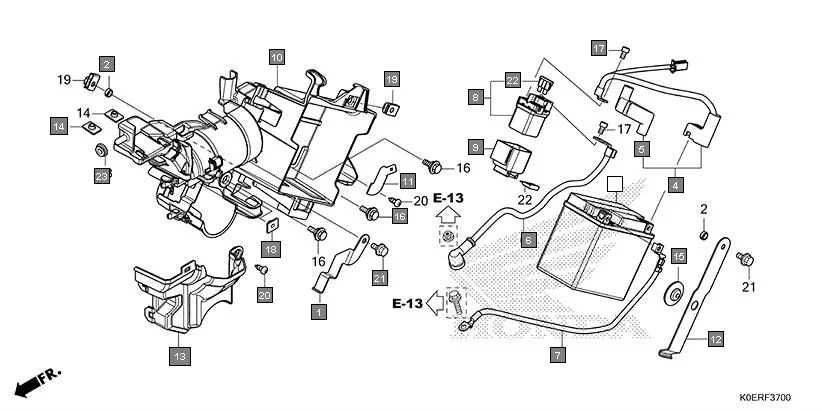

F-37 - BATTERY
HONDA SP160 CBF160FSR · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16716-K1K-D00 | STAY, FUEL PUMP | 1 | |
| 2 | 17223-KVX-600 | COLLAR, AIR CLEANER | 2 | |
| 3 | 31500-KRP-801 | BATTERY ASSY | 1 | |
| 3 | 31500-KRP-N41 | BATTERY ASSY MF 5 | 1 | |
| 4 | 32401-K1K-D01 | CABLE, STARTER MAGNETIC | 1 | |
| 5 | 32406-MT3-610 | COVER, ST. MAG TERMINAL A | 1 | |
| 6 | 32410-K1K-D01 | CABLE, STARTER MOTOR | 1 | |
| 7 | 32601-K1K-D00 | CABLE, BATTERY EARTH | 1 | |
| 8 | 35850-K38-901 | SWITCH ASSY., STARTER MAGNETIC | 1 | |
| 9 | 35856-K1K-D00 | RUBBER, SHOCK | 1 | |
| 10 | 50384-K1K-D00 | BOX, BATTERY | 1 | |
| 11 | 50385-K1K-D00 | STAY, FUSE BOX | 1 | |
| 12 | 50386-K0E-D50 | BAND, BATTERY | 1 | |
| 13 | 50387-K1K-D00 | COVER, BATTERY BOX | 1 | |
| 14 | 61304-MGS-D70 | NUT, SPECIAL, 5MM | 2 | |
| 15 | 83618-323-000 | RUBBER, BATTERY BOX | 1 | |
| 16 | 90111-162-000 | BOLT, FLANGE, 6MM | 3 | |
| 17 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 2 | |
| 18 | 90311-K0N-D80 | NUT, 6MM | 2 | |
| 19 | 90653-K0L-D00 | NUT, CLIP, 6MM | 2 | |
| 20 | 93903-25220 | SCREW, TAPPING, 5X12 | 2 | |
| 21 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 2 | |
| 22 | 98200-32000 | BLADE, FUSE, 20A | 2 | |
| 23 | 83551-376-000 | GROMMET, SIDE COVER | 1 | |
