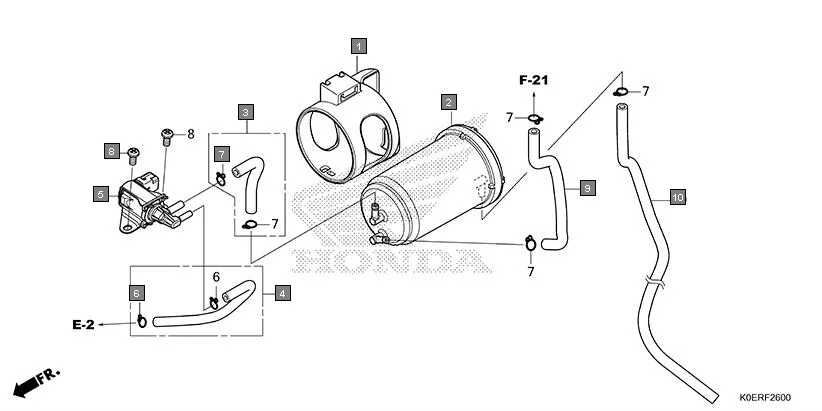

F-26 - CANISTER
HONDA SP160 CBF160FSR · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17311-K1K-D00 | RUBBER, CANISTER MOUNT | 1 | |
| 2 | 17410-K1K-D01 | CANISTER COMP. | 1 | |
| 3 | 17413-K1K-D00 | TUBE ASSY. A, PURGE | 1 | |
| 4 | 17415-K1K-D00 | TUBE ASSY. B, PURGE | 1 | |
| 5 | 36162-K0L-D01 | VALVE, PURGE CONTROL SOLENOID (MITSUBISHI) | 1 | |
| 6 | 90651-KWP-F00 | CLIP, TUBE(B7) | 2 | |
| 7 | 90652-KWP-F00 | CLIP, TUBE(B8) | 5 | |
| 8 | 93500-05010-0H | SCREW, PAN, 5X10 | 2 | |
| 9 | 95001-45160-40 | TUBE, FUEL, 4.5X160 (95001-45001-60M) | 1 | |
| 10 | 95001-45525-40 | TUBE, FUEL, 4.5X525 (95001-45001-60M) | 1 | |
