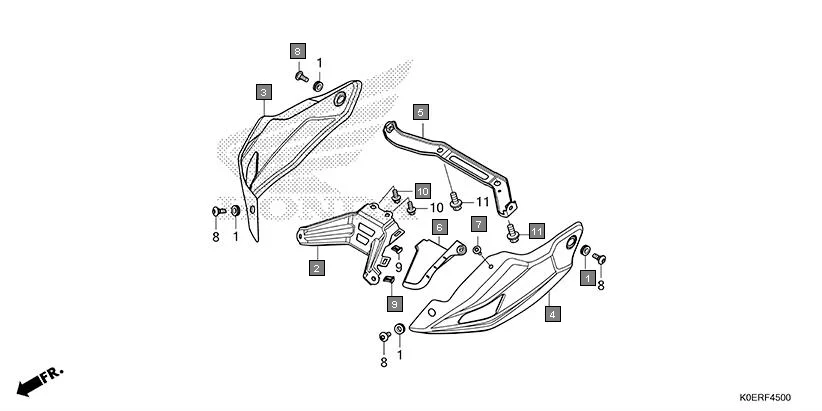

F-45 - UNDER COWL
HONDA SP160 CBF160FSR · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 4 | |
| 2 | 64314-K0E-D50 | STAY, UNDER COWL(FR.) | 1 | |
| 3 | 64311-K0E-D50ZA | COWL, R. UNDER *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 4 | 64312-K0E-D50ZA | COWL, L. UNDER *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 5 | 64316-K0E-D50 | STAY, UNDER COWL(RR.) | 1 | |
| 6 | 64317-K0E-D50 | COVER, UNDER COWL | 1 | |
| 7 | 90116-SP0-003 | CLIP, BUMPER SEAL | 1 | |
| 8 | 90134-K0E-D50 | SCREW, PAN, 6X16 | 4 | |
| 9 | 90651-K14-A31 | CLIP, SLIDE | 2 | |
| 10 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 11 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 2 | |
