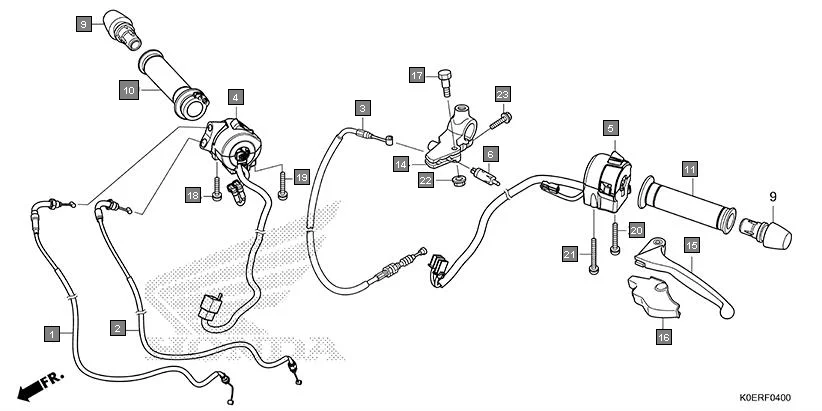

F-4 - HANDLE LEVER/SWITCH/CABLE
HONDA SP160 CBF160FSR · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-K0E-DF1 | CABLE COMP. A, THROTTLE | 1 | |
| 2 | 17920-K0E-D52 | CABLE COMP. B, THROTTLE (SUPRAJIT) | 1 | |
| 3 | 22870-K0E-DF1 | CABLE COMP., CLUTCH | 1 | |
| 4 | 35150-K0E-D51 | SWITCH ASSY., STARTER & ENGINE STOP | 1 | |
| 5 | 35200-K0E-D51 | SWITCH ASSY., WINKER | 1 | |
| 6 | 35330-KYJ-611 | SWITCH ASSY., CLUTCH | 1 | |
| 9 | 53105-KRC-900 | END STRG. HANDLE | 2 | |
| 10 | 53140-K1K-D00 | GRIP COMP., THROTTLE | 1 | |
| 11 | 53166-KSP-A70 | GRIP L HANDLE | 1 | |
| 14 | 53172-KTE-930 | BRKT L HNDL LEVER | 1 | |
| 15 | 53178-K21-900 | LEVER COMP., L. HANDLE | 1 | |
| 16 | 53179-KWF-950 | COVER, L. HANDLE LEVER | 1 | |
| 17 | 90114-310-000 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 18 | 93892-05020-07 | SCREW, WASHER, 5X20 | 1 | |
| 19 | 93892-05025-07 | SCREW, WASHER, 5X25 | 1 | |
| 20 | 93892-05035-07 | SCREW, WASHER, 5X35 | 1 | |
| 21 | 93892-05045-07 | SCREW, WASHER, 5X45 | 1 | |
| 22 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 23 | 96001-06025-00 | BOLT, FLANGE, SH. 6 X 25 | 1 | |
