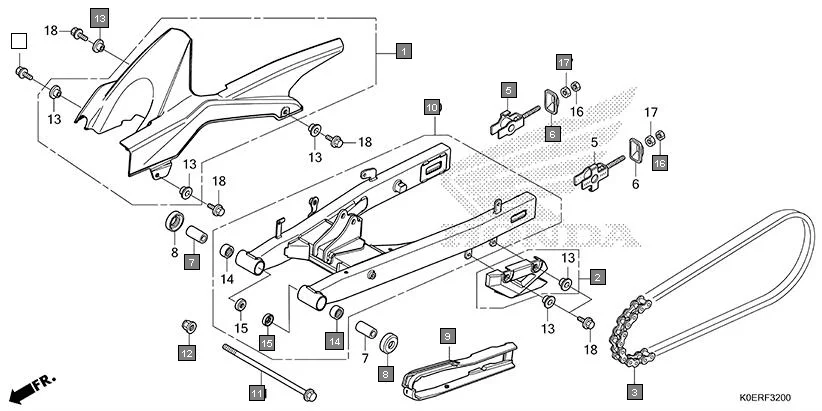

F-32 - SWINGARM
HONDA SP160 CBF160FSR · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40511-K0E-DF0 | CASE, DRIVE CHAIN | 1 | |
| 2 | 40521-K0E-D00 | COVER, DRIVE CHAIN UNDER | 1 | |
| 3 | 40530-K0E-D21 | CHAIN, DRIVE(LGB) (R428OR-130LE) | 1 | |
| 5 | 40543-K0E-D00 | ADJUSTER COMP., CHAIN | 2 | |
| 6 | 40546-K38-940 | CAP, RR. FORK END | 2 | |
| 7 | 52141-K21-900 | COLLAR, SWINGARM PIVOT | 2 | |
| 8 | 52144-GC4-003 | DUST SEAL, 31X40.5X7.1(ARAI) | 2 | |
| 9 | 52170-K0E-D00 | SLIDER, CHAIN | 1 | |
| 10 | 52200-K0E-DF0 | SWINGARM SUB ASSY., RR. | 1 | |
| 10 | 52200-K0E-DG0 | SWINGARM SUB ASSY., RR. | 1 | |
| 11 | 90121-KSP-900 | BOLT, SWINGARM PIVOT | 1 | |
| 12 | 90305-KVN-901 | NUT, FLANGE, 14MM (SIMMONDS MARSHALL) | 1 | |
| 13 | 90522-KSP-860 | COLLAR, CHAIN CASE SETTING | 6 | |
| 14 | 91071-KSP-901 | BEARING, NEEDLE, 20X26X20 | 2 | |
| 15 | 91254-KS6-003 | DUST SEAL 20 X 26 X 4.5 | 2 | |
| 16 | 94001-06000-0S | NUT, HEX., 6 MM | 2 | |
| 17 | 90302-KBP-900 | NUT SPL 6 MM | 2 | |
| 18 | 95701-06014-07 | BOLT, FLANGE, 6X14 | 6 | |
