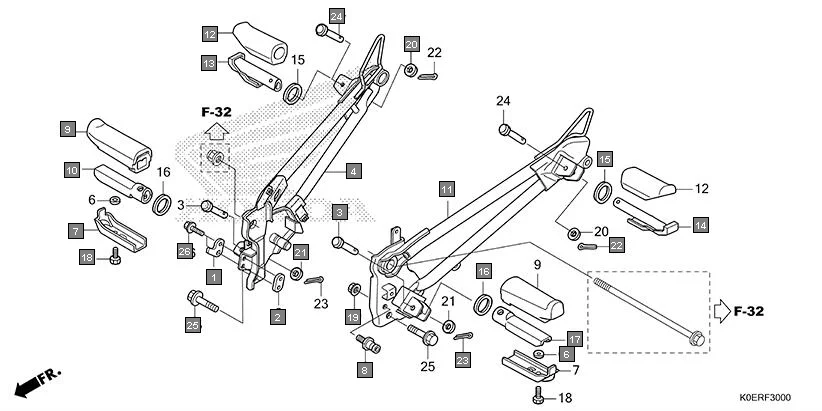

F-30 - STEP
HONDA SP160 CBF160FSR · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50220-K43-900 | STOPPER, KICK STARTER | 1 | |
| 2 | 50221-K43-900 | NUT, PLATE | 1 | |
| 3 | 50602-KSP-900 | PIN,M STEP BAR JOINT | 2 | |
| 4 | 50640-K0E-D70 | HOLDER, R. STEP | 1 | |
| 4 | 50640-K0E-D50 | HOLDER, R. STEP | 1 | |
| 6 | 50618-KE8-000 | COLLAR, 6.5 X 11 X 3 | 2 | |
| 7 | 50619-K0E-D00 | PLATE, STEP LOWER | 2 | |
| 8 | 50643-K0E-D00 | PIVOT, CHANGE PEDAL | 1 | |
| 9 | 50661-K43-900 | RUBBER, MAIN STEP | 2 | |
| 10 | 50701-KSP-900 | BAR,R M STEP | 1 | |
| 11 | 50740-K0E-DF0 | HOLDER, L. STEP | 1 | |
| 12 | 50710-KYJ-900 | RUBBER, PILLION STEP | 2 | |
| 13 | 50711-K0E-D50 | BAR, R. PILLION STEP | 1 | |
| 14 | 50712-K0E-D50 | BAR, L. PILLION STEP | 1 | |
| 15 | 50715-KE8-000 | PLATE, P. STEP SIDE | 2 | |
| 16 | 50715-KSP-910 | PLATE,P STEP SIDE | 2 | |
| 17 | 50801-KSP-900 | BAR,L M STEP | 1 | |
| 18 | 92101-06012-0G | BOLT, HEX 6 X 12 | 2 | |
| 19 | 94050-08000 | NUT, FLANGE, 8MM | 1 | |
| 20 | 94102-08000 | WASHER, PLAIN, 8MM | 2 | |
| 22 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 2 | |
| 24 | 50603-K0N-D00 | PIN, PILLION STEP BAR JOINT | 2 | |
| 25 | 95701-10025-00 | BOLT, FLANGE, 10 X 25 | 2 | |
| 26 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 2 | |
