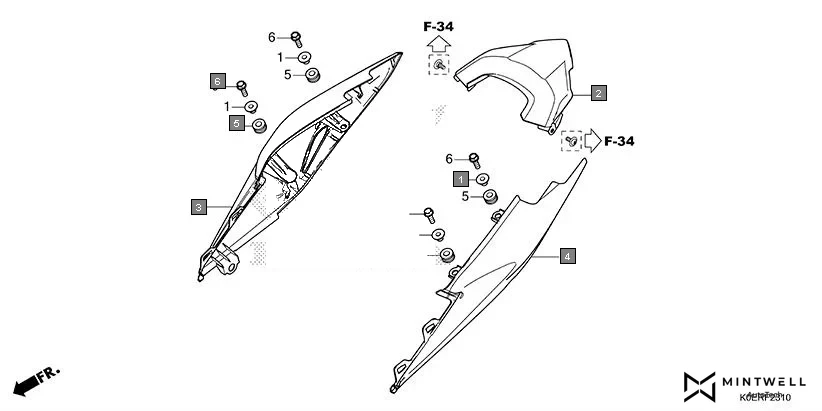

F-23-10 - REAR COWL
HONDA SP160 CBF160FSR · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17232-KYJ-900 | COLLAR, AIR CLEANER MOUNTING | 4 | |
| 2 | 77231-K0E-DF0 | COWL, RR. CENTER | 1 | |
| 3 | 77270-K0E-DF0ZA | COWL SET, R. RR.(WL) *TYPE6* | 1 | |
| 3 | 77270-K0E-DF0ZB | COWL SET, R. RR.(WL) *TYPE5* | 1 | |
| 3 | 77270-K0E-DF0ZC | COWL SET, R. RR.(WL) *TYPE4* | 1 | |
| 3 | 77270-K0E-DF0ZD | COWL SET, R. RR.(WL) *TYPE3* | 1 | |
| 3 | 77270-K0E-DF0ZE | COWL SET, R. RR.(WL) *TYPE2* | 1 | |
| 3 | 77270-K0E-DF0ZF | COWL SET, R. RR.(WL) *TYPE1* | 1 | |
| 4 | 77280-K0E-DF0ZA | COWL SET, L. RR.(WL) *TYPE6* | 1 | |
| 4 | 77280-K0E-DF0ZB | COWL SET, L. RR.(WL) *TYPE5* | 1 | |
| 4 | 77280-K0E-DF0ZC | COWL SET, L. RR.(WL) *TYPE4* | 1 | |
| 4 | 77280-K0E-DF0ZD | COWL SET, L. RR.(WL) *TYPE3* | 1 | |
| 4 | 77280-K0E-DF0ZE | COWL SET, L. RR.(WL) *TYPE2* | 1 | |
| 4 | 77280-K0E-DF0ZF | COWL SET, L. RR.(WL) *TYPE1* | 1 | |
| 5 | 83545-KCJ-690 | RUBBER, SIDE COVER | 4 | |
| 6 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 4 | |
