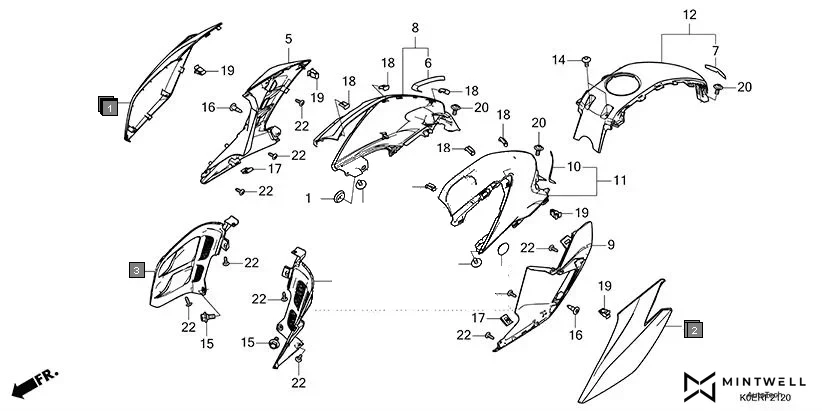

F-21-20 - FUEL TANK COVER
HONDA SP160 CBF160FSR · 42 parts
Parts in This Assembly (42)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50240-K0E-DF0ZA | SHROUD SET, R. GARNISH(WL) *TYPE6* | 1 | |
| 1 | 50240-K0E-DF0ZB | SHROUD SET, R. GARNISH(WL) *TYPE5* | 1 | |
| 1 | 50240-K0E-DF0ZC | SHROUD SET, R. GARNISH(WL) *TYPE4* | 1 | |
| 1 | 50240-K0E-DF0ZD | SHROUD SET, R. GARNISH(WL) *TYPE3* | 1 | |
| 1 | 50240-K0E-DF0ZE | SHROUD SET, R. GARNISH(WL) *TYPE2* | 1 | |
| 1 | 50240-K0E-DF0ZF | SHROUD SET, R. GARNISH(WL) *TYPE1* | 1 | |
| 2 | 50250-K0E-DF0ZA | SHROUD SET, L. GARNISH(WL) *TYPE6* | 1 | |
| 2 | 50250-K0E-DF0ZB | SHROUD SET, L. GARNISH(WL) *TYPE5* | 1 | |
| 2 | 50250-K0E-DF0ZC | SHROUD SET, L. GARNISH(WL) *TYPE4* | 1 | |
| 2 | 50250-K0E-DF0ZD | SHROUD SET, L. GARNISH(WL) *TYPE3* | 1 | |
| 2 | 50250-K0E-DF0ZE | SHROUD SET, L. GARNISH(WL) *TYPE2* | 1 | |
| 2 | 50250-K0E-DF0ZF | SHROUD SET, L. GARNISH(WL) *TYPE1* | 1 | |
| 3 | 50280-K0E-DF0 | SHROUD, R. INNER | 1 | |
| 4 | 50285-K0E-DF0 | SHROUD, L. INNER | 1 | |
| 5 | 64412-K0E-DF0 | COVER, R. FUEL TANK LOWER | 1 | |
| 6 | 64413-K0E-DF0 | FILM, R. TANK COVER PROTECTOR | 1 | |
| 7 | 64414-K0E-DF0 | FILM, TANK COVER PROTECTOR | 1 | |
| 8 | 64415-K0E-DF0ZA | COVER ASSY., R. FUEL TANK(WL) *TYPE6* | 1 | |
| 8 | 64415-K0E-DF0ZB | COVER ASSY., R. FUEL TANK(WL) *TYPE5* | 1 | |
| 8 | 64415-K0E-DF0ZC | COVER ASSY., R. FUEL TANK(WL) *TYPE4* | 1 | |
| 8 | 64415-K0E-DF0ZD | COVER ASSY., R. FUEL TANK(WL) *TYPE3* | 1 | |
| 8 | 64415-K0E-DF0ZE | COVER ASSY., R. FUEL TANK(WL) *TYPE2* | 1 | |
| 8 | 64415-K0E-DF0ZF | COVER ASSY., R. FUEL TANK(WL) *TYPE1* | 1 | |
| 9 | 64422-K0E-DF0 | COVER, L. FUEL TANK LOWER | 1 | |
| 10 | 64423-K0E-DF0 | FILM, L. TANK COVER PROTECTOR | 1 | |
| 11 | 64425-K0E-DF0ZA | COVER ASSY., L. FUEL TANK(WL) *TYPE6* | 1 | |
| 11 | 64425-K0E-DF0ZB | COVER ASSY., L. FUEL TANK(WL) *TYPE5* | 1 | |
| 11 | 64425-K0E-DF0ZC | COVER ASSY., L. FUEL TANK(WL) *TYPE4* | 1 | |
| 11 | 64425-K0E-DF0ZD | COVER ASSY., L. FUEL TANK(WL) *TYPE3* | 1 | |
| 11 | 64425-K0E-DF0ZE | COVER ASSY., L. FUEL TANK(WL) *TYPE2* | 1 | |
| 11 | 64425-K0E-DF0ZF | COVER ASSY., L. FUEL TANK(WL) *TYPE1* | 1 | |
| 12 | 64440-K0E-DF0ZA | COVER ASSY., FUEL TANK CENTER *NHC31M* | 1 | |
| 13 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
| 14 | 90107-K0E-D00 | SCREW, PAN, 5X12 | 2 | |
| 15 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 16 | 90116-SP0-003 | CLIP, BUMPER SEAL | 2 | |
| 17 | 90344-KTE-910 | NUT, CLIP, 4MM | 2 | |
| 18 | 90651-K14-A31 | CLIP, SLIDE | 6 | |
| 19 | 90666-K59-A11 | CLIP, SNAP FITTING(PO) | 4 | |
| 20 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 3 | |
| 21 | 93894-05010-07 | SCREW-WASHER, 5X10 | 2 | |
| 22 | 93903-24320 | SCREW, TAPPING, 4X12 | 10 | |
