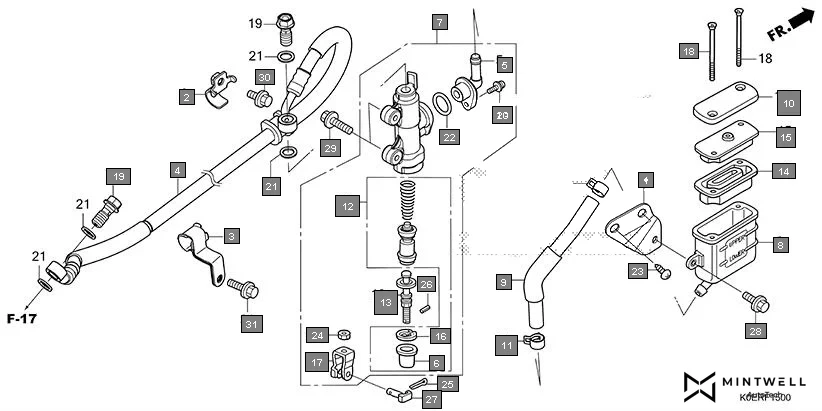

F-15 - REAR BRAKE MASTER CYLINDER
HONDA SP160 CBF160FSR · 31 parts
Parts in This Assembly (31)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17209-K0E-D70 | STAY, OIL CUP | 1 | |
| 2 | 43155-K0E-DG0 | CLAMPER COMP., RR. BRAKE HOSE | 1 | |
| 3 | 43156-K0E-DG0 | GUIDE, RR. BRAKE HOSE | 1 | |
| 4 | 43310-K0E-DG1 | HOSE COMP., RR. BRAKE | 1 | |
| 5 | 43503-MER-D01 | CONNECTOR, MASTER CYLINDER | 1 | |
| 6 | 43504-MB2-006 | BOOT COMP. | 1 | |
| 7 | 43510-K15-901 | CYLINDER SUB ASSY., RR. BRAKE MASTER(NISSIN) | 1 | |
| 8 | 43511-K43-D31 | CUP COMP., OIL | 1 | |
| 9 | 43512-K0E-D71 | HOSE, RR. MASTER CYLINDER | 1 | |
| 10 | 43513-KBP-881 | CAP, MASTER CYLINDER | 1 | |
| 11 | 43514-KS6-701 | CLAMP. M/C OIL HOSE | 2 | |
| 12 | 43520-MJ6-315 | PISTON SET M/C | 1 | |
| 13 | 43530-MV9-006 | PUSH ROD COMP. | 1 | |
| 14 | 45520-GW0-911 | DIAPHRAGM | 1 | |
| 15 | 45521-GW0-911 | PLATE DIAPHRAGM | 1 | |
| 16 | 46182-MEL-D21 | CIRCLIP | 1 | |
| 17 | 46504-KV6-702 | JOINT BRK ROD | 1 | |
| 18 | 90140-K43-D31 | SCREW, FLAT, 4X50 | 2 | |
| 19 | 90145-GAZ-981 | BOLT, OIL, 10X22 | 2 | |
| 20 | 90508-K21-921 | SCREW-WASHER, 4X12 | 1 | |
| 21 | 90545-300-000 | WASHER ,OIL BOLT | 4 | |
| 22 | 91212-422-006 | O RING | 1 | |
| 23 | 93903-25220 | SCREW, TAPPING, 5X12 | 2 | |
| 24 | 94002-08000-0S | NUT HEX.8 MM | 1 | |
| 25 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
| 26 | 94305-20102 | PIN SPRING 2X10 | 1 | |
| 27 | 95015-54000 | PIN D JOINT | 1 | |
| 28 | 95701-06014-08 | BOLT FLANGE 6X14 | 1 | |
| 29 | 95701-06022-08 | BOLT, FLANGE, 6X22 | 2 | |
| 30 | 96001-06010-07 | BOLT FLANGE, SH., 6 X 10 | 1 | |
| 31 | 96001-06016-07 | BOLT, FLANGE, SH. 6 X 16 | 1 | |
