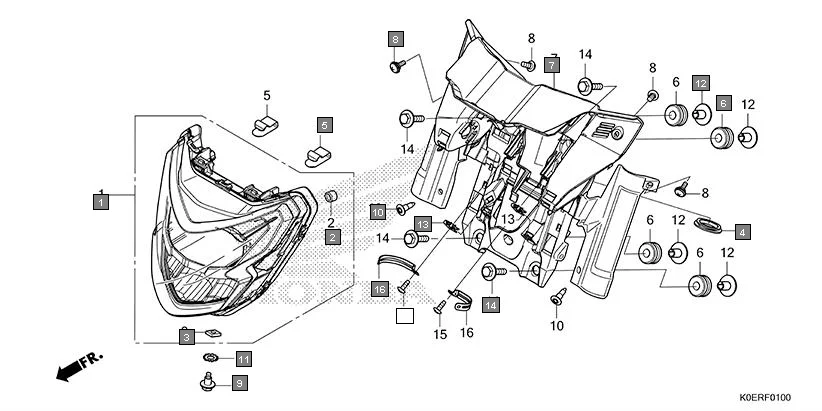

F-1 - HEADLIGHT
HONDA SP160 CBF160FSR · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33100-K0E-DF1 | HEADLIGHT ASSY. | 1 | |
| 2 | 33113-MEE-D01 | PIPE, CP | 1 | |
| 3 | 33128-GBL-003 | NUT, SPECIAL | 1 | |
| 4 | 37312-K0E-D00 | GROMMET, COMBINATION SWITCH | 1 | |
| 5 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 6 | 61103-357-000 | RUBBER FR. FENDER MOUNT | 4 | |
| 7 | 61311-K0E-DF0 | COVER, HEADLIGHT RR. | 1 | |
| 8 | 90101-GE0-000 | SCREW, HINGE PATCH | 4 | |
| 9 | 90101-K1E-600 | BOLT, ADJUSTING | 1 | |
| 10 | 90116-SP0-003 | CLIP, BUMPER SEAL | 2 | |
| 11 | 90307-K21-900 | WASHER, LOCK, 6MM | 1 | |
| 12 | 90310-KWS-900 | COLLAR, FR. COWL | 4 | |
| 13 | 90320-KTE-600 | NUT, SPRING, 5MM | 2 | |
| 14 | 93414-06025-07 | BOLT-WASHER, 6X25 | 4 | |
| 15 | 93913-24220 | SCREW, TAPPING, 4 X 12 | 2 | |
| 16 | 91591-K0E-DF0 | CLIP, 2X80 | 2 | |
| 17 | 64209-K0E-DF0 | RUBBER, COVER HEAD LIGHT RR.... | 1 | |
| 18 | 64210-K0E-DF0 | COVER ASSY., HEAD LIGHT RR..... | 1 | |
