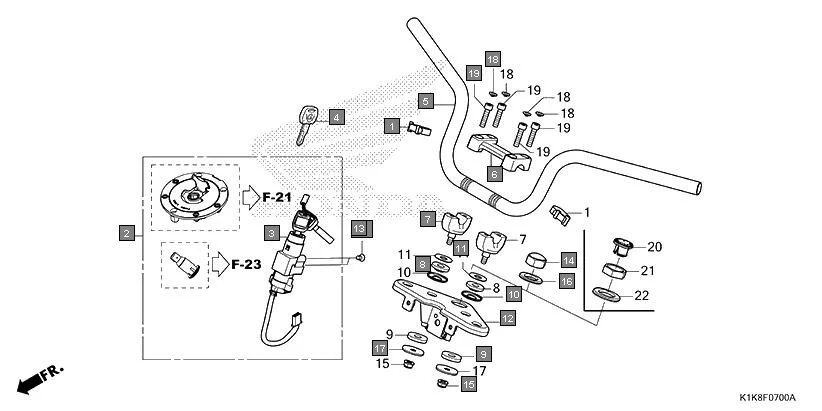

F-7 - HANDLE PIPE/TOP BRIDGE
HONDA CB Unicorn 160 CBF160AL · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32161-KSP-920 | BAND B1, WIRE | 2 | |
| 2 | 35010-K1K-D00 | KEY SET | 1 | |
| 3 | 35100-K1K-D01 | SWITCH ASSY., COMBINATION & LOCK | 1 | |
| 4 | 35121-KSP-910 | KEY, BLANK | 1 | |
| 5 | 53100-K1K-D00 | PIPE, STEERING HANDLE | 1 | |
| 6 | 53131-K1K-D00ZB | HOLDER, HANDLE UPPER *NHC38M* CLOUD SILVER METALLIC 2 | 1 | |
| 7 | 53132-K1K-D00ZB | HOLDER, HANDLE UNDER *NHC38M* CLOUD SILVER METALLIC 2 | 2 | |
| 8 | 53133-K1K-D00 | RUBBER, HANDLE CUSHION UPPER | 2 | |
| 9 | 53134-028-000 | RUBBER, HANDLE CUSHION UNDER | 2 | |
| 10 | 53134-KZA-W00 | WASHER HANDLE HOLDER | 2 | |
| 11 | 53136-KZA-W00 | PLATE HANDLE CUSHION | 2 | |
| 12 | 53230-K1K-D00ZB | BRIDGE COMP., FORK TOP *NHC38M* CLOUD SILVER METALLIC 2 | 1 | |
| 13 | 90164-KPL-900 | SCREW, FLAT, U LOCK, 6X12 | 2 | |
| 14 | 90304-K63-D30 | NUT, STEERING STEM | 1 | |
| 15 | 90309-KTE-911 | NUT,FLG PT 8MM | 2 | |
| 16 | 90503-KSP-900 | WASHER, STEERING STEM | 1 | |
| 17 | 90535-KSP-902 | WASHER, HANDLE UNDER HOLDER | 2 | |
| 18 | 91455-KL8-710 | CAP, SOCKET BOLT, 8MM | 4 | |
| 19 | 96600-08032-00 | BOLT FLANGE, 8 X 32 | 4 | |
