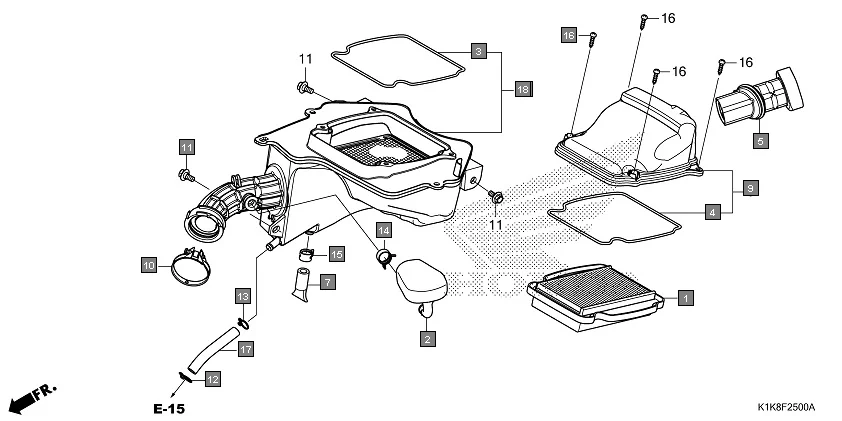

F-25 - AIR CLEANER
HONDA CB Unicorn 160 CBF160AL · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17211-K1K-D00 | ELEMENT COMP., AIR CLEANER | 1 | |
| 2 | 17213-K1K-D00 | RESONATOR | 1 | |
| 3 | 17214-K1K-D00 | SEAL, AIR CLEANER COVER | 1 | |
| 5 | 17219-K1K-D00 | DUCT, AIR CLEANER | 1 | |
| 7 | 17227-KTE-910 | V.TUBE 11X15X40 | 1 | |
| 9 | 17245-K1K-D00 | COVER SUB ASSY., AIR CLEANER | 1 | |
| 10 | 17255-K0L-D00 | BAND, AIR CLEANER CONNECTING TUBE(48) | 1 | |
| 11 | 90111-162-000 | BOLT, FLANGE, 6MM | 3 | |
| 12 | 90651-KM9-000 | CLIP B14 TUBE | 1 | |
| 13 | 90651-MK3-780 | CLIP, B 12.5 TUBE | 1 | |
| 14 | 90678-K38-900 | CLIP, RESONATOR | 1 | |
| 15 | 91406-KFN-850 | CLAMP, D14.5 TUBE | 1 | |
| 16 | 93903-25480 | SCREW TAPPING 5X20 | 4 | |
| 17 | 95005-80085-20 | TUBE, 8X85(95005-80001-20M) | 1 | |
| 18 | 17225-K1K-D00 | CASE SUB ASSY., AIR CLEANER | 1 | |
