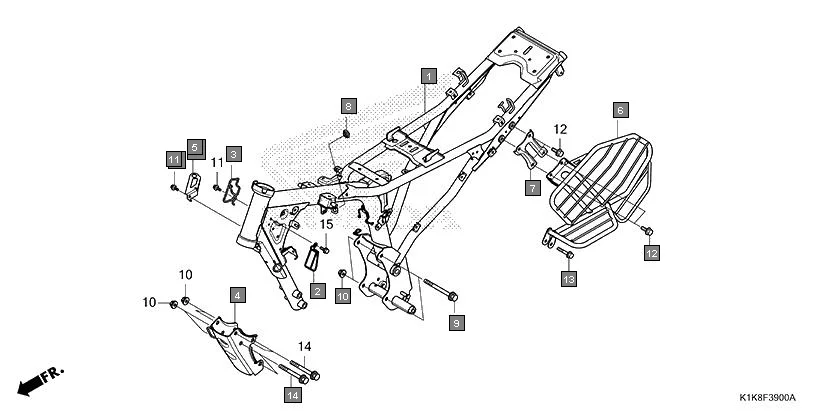

F-39 - FRAME BODY
HONDA CB Unicorn 160 CBF160AL · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-K1K-D00 | BODY COMP., FRAME | 1 | |
| 2 | 50211-K1K-D00 | GUIDE, HARNESS | 1 | |
| 3 | 50222-K1K-D00 | GUIDE, BRAKE HOSE | 1 | |
| 4 | 50351-K1K-D00 | PLATE COMP., FR. ENGINE HANGER | 1 | |
| 5 | 50388-K1K-D00 | STAY, ABS MODULATOR | 1 | |
| 6 | 51103-K1K-D00 | GUARD, SARI | 1 | |
| 7 | 51105-K1K-D00 | PLATE, SARI GUARD | 1 | |
| 8 | 83551-376-000 | GROMMET, SIDE COVER | 1 | |
| 9 | 90019-399-010 | BOLT, FLANGE, 10 X 110 | 2 | |
| 11 | 95701-06012-07 | BOLT, FLANGE, 6X12 | 3 | |
| 12 | 95701-08014-07 | BOLT, FLANGE, 8X14 | 4 | |
| 13 | 95701-08035-07 | BOLT, FLANGE, 8X35 | 1 | |
| 14 | 95801-10090-00 | BOLT, FLANGE, 10X90 | 4 | |
