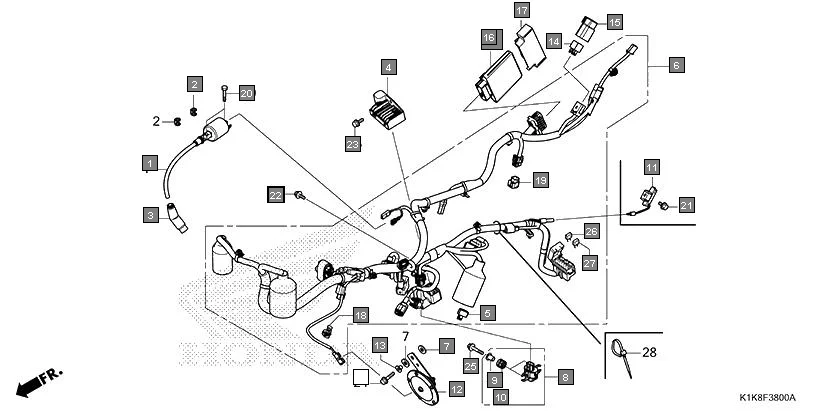

F-38 - WIRE HARNESS
HONDA CB Unicorn 160 CBF160AL · 28 parts
Parts in This Assembly (28)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30500-K0V-A01 | COIL ASSY., IGNITION(WINGS) | 1 | |
| 2 | 30520-GFM-900 | SPACER, IGNITION COIL | 2 | |
| 3 | 30700-K14-901 | CAP ASSY., NOISE SUPPRESSOR (KUNAL) | 1 | |
| 4 | 31600-K1K-D01 | RECTIFIER COMP., REGULATOR | 1 | |
| 5 | 31700-124-008 | RECTIFIER ASSY., SILICON(SHINDENGEN) | 1 | |
| 6 | 32100-K1K-D00 | HARNESS, WIRE | 1 | |
| 6 | 32100-K1K-D10 | HARNESS, WIRE | 1 | |
| 7 | 33714-K38-900 | RUBBER, TAILLIGHT BRACKET | 2 | |
| 8 | 35160-KRE-G01 | SENSOR ASSY., BANK ANGLE | 1 | |
| 9 | 35162-KRE-G00 | COLLAR | 2 | |
| 10 | 35163-KRE-G00 | GROMMET | 2 | |
| 11 | 35400-K43-901 | RESISTOR COMP. | 1 | |
| 12 | 38110-KYJ-611 | HORN COMP. | 1 | |
| 13 | 38117-KFE-701 | COLLAR, HORN SET | 1 | |
| 14 | 38501-KVZ-631 | RELAY ASSY., POWER (MICRO ISO 4P)(MITSUBA) | 1 | |
| 15 | 38506-KSP-910 | SUS., POWER RELAY | 1 | |
| 16 | 38770-K1K-D12 | PGM-FI UNIT | 1 | |
| 16 | 38770-K1K-D01 | PGM-FI UNIT | 1 | |
| 17 | 38771-K1K-D00 | CUSHION, PGM-FI UNIT | 1 | |
| 17 | 38770-K1K-D02 | UNITCOMPPGM-FI/ | 1 | |
| 19 | 91771-MKK-H11 | CAP, DUMMY(6P)(RED) | 1 | |
| 20 | 92101-06020-4J | BOLT, HEX., 6 X 20 | 2 | |
| 21 | 95701-06010-00 | BOLT, FLANGE, 6 X 10 | 1 | |
| 22 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 24 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 1 | |
| 24 | 95702-06020-08 | BOLT, FLANGE, 6X20 | 1 | |
| 26 | 98200-40750 | FUSE, MINI(7.5A) | 4 | |
| 27 | 98200-41000 | FUSE, MINI(10A) | 3 | |
