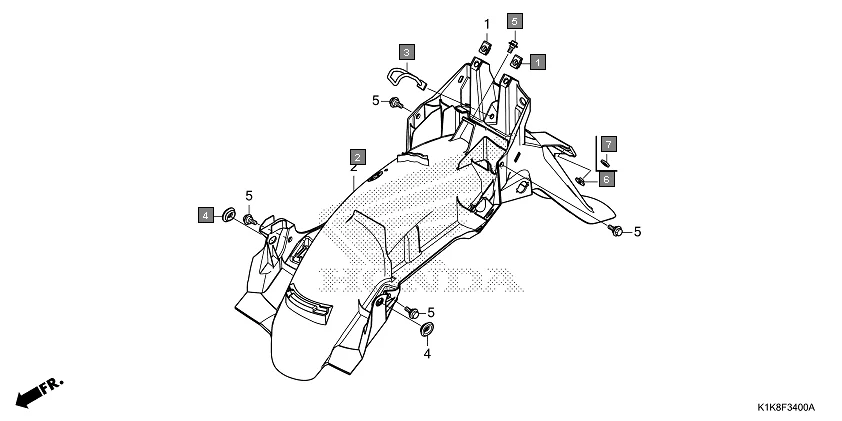

F-34 - REAR FENDER
HONDA CB Unicorn 160 CBF160AL · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 80102-KZJ-900 | NUT, CLIP, 6MM | 2 | |
| 2 | 80110-K1K-D00 | FENDER, RR. | 1 | |
| 3 | 80123-K38-900 | BAND, TOOL | 1 | |
| 4 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
| 6 | 90311-KTE-910 | NUT REAR FENDER | 2 | |
| 7 | 90501-K0Y-D00 | WASHER, PLAIN, 5MM | 2 | |
