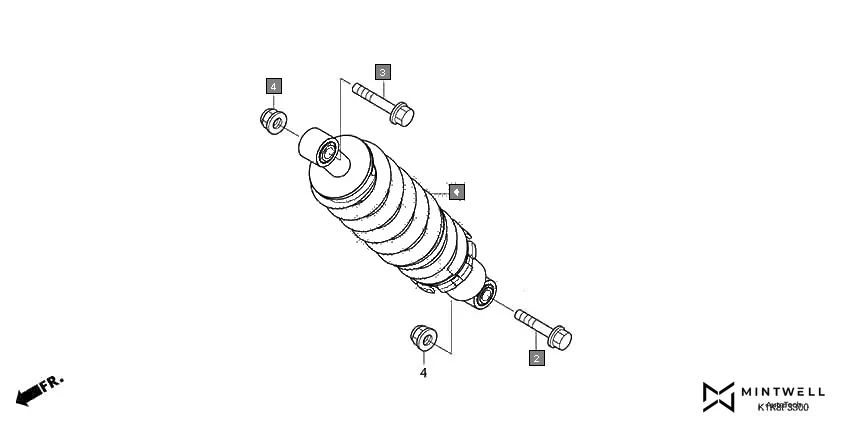

F-33 - REAR CUSHION
HONDA CB Unicorn 160 CBF160AL · 4 parts
Parts in This Assembly (4)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-K1K-D01 | CUSHION ASSY., RR.(SHOWA) | 1 | |
| 2 | 90151-KSP-900 | BOLT, FLANGE, 10X48 | 1 | |
| 3 | 90153-KYJ-900 | BOLT, FLANGE, 10X53 | 1 | |
| 4 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 2 | |
