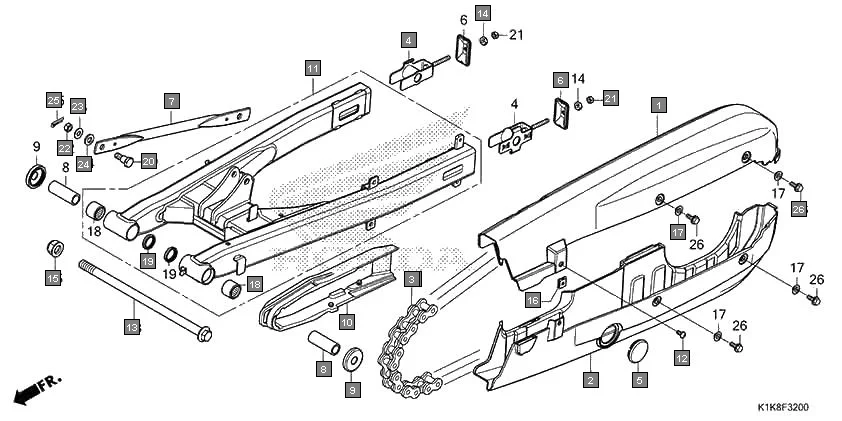

F-32 - SWINGARM
HONDA CB Unicorn 160 CBF160AL · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-K1K-D00 | CASE, UPPER HALF DRIVE CHAIN | 1 | |
| 2 | 40520-K1K-D00 | CASE, UNDER HALF DRIVE CHAIN | 1 | |
| 3 | 40530-K1K-D01 | CHAIN, DRIVE(DID428VIX3-128LE) | 1 | |
| 3 | 40530-K1K-D02 | CHAIN, DRIVE(LGB R428OR-128LE) | 1 | |
| 4 | 40543-K0E-D00 | ADJUSTER COMP., CHAIN | 2 | |
| 5 | 40545-KWV-010 | CAP, CHAIN CASE PEEP HOLE | 1 | |
| 6 | 40546-K38-940 | CAP, RR. FORK END | 2 | |
| 7 | 43431-K1K-D00 | ARM, RR. BRAKE STOPPER | 1 | |
| 8 | 52141-K21-900 | COLLAR, SWINGARM PIVOT | 2 | |
| 9 | 52144-GC4-003 | DUST SEAL, 31X40.5X7.1(ARAI) | 2 | |
| 10 | 52170-K1K-D00 | SLIDER, CHAIN | 1 | |
| 11 | 52200-K1K-D00 | SWINGARM SUB ASSY., RR. | 1 | |
| 13 | 90121-K1K-D00 | BOLT, SWINGARM PIVOT | 1 | |
| 14 | 90302-KBP-900 | NUT SPL 6 MM | 2 | |
| 16 | 90320-KTE-600 | NUT, SPRING, 5MM | 1 | |
| 17 | 90522-KSP-860 | COLLAR, CHAIN CASE SETTING | 4 | |
| 18 | 91071-KSP-901 | BEARING, NEEDLE, 20X26X20 | 2 | |
| 19 | 91254-KS6-003 | DUST SEAL 20 X 26 X 4.5 | 2 | |
| 20 | 92812-10000 | BOLT A BRAKE STOPPER ARM | 1 | |
| 23 | 94101-08000 | WASHER, PLAIN, 8MM | 1 | |
| 24 | 94111-10000 | WASHER, SPRING, 10MM | 1 | |
