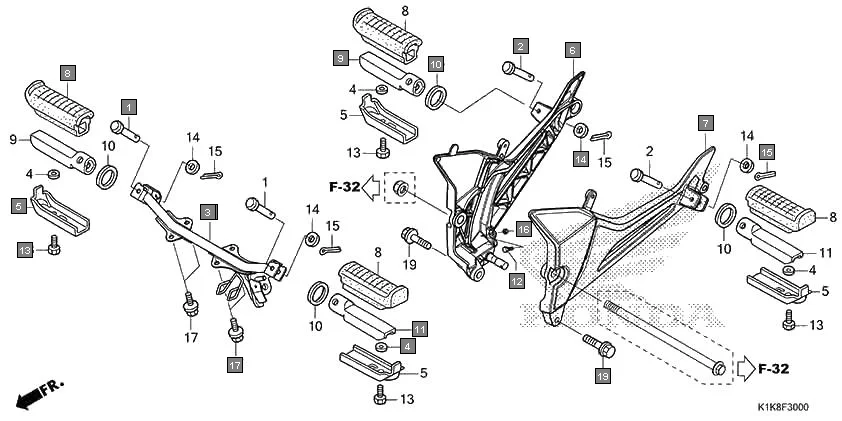

F-30 - STEP
HONDA CB Unicorn 160 CBF160AL · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50602-KSP-900 | PIN,M STEP BAR JOINT | 2 | |
| 2 | 50603-KSP-900 | PIN, STEP BAR JOINT | 2 | |
| 3 | 50610-K1K-D00 | BAR COMP., STEP | 1 | |
| 3 | 50610-K1K-D10 | BAR COMP., STEP | 1 | |
| 4 | 50618-KE8-000 | COLLAR, 6.5 X 11 X 3 | 4 | |
| 5 | 50619-KSP-900 | PLATE, STEP LOWER | 4 | |
| 6 | 50630-K1K-D00ZA | HOLDER, R. STEP *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 7 | 50640-K1K-D00ZA | HOLDER, L. STEP *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 8 | 50661-KSP-B10 | RUBBER, MAIN STEP (PILLION) | 4 | |
| 9 | 50701-KSP-900 | BAR,R M STEP | 2 | |
| 10 | 50715-KSP-910 | PLATE,P STEP SIDE | 4 | |
| 11 | 50801-KSP-900 | BAR,L M STEP | 2 | |
| 12 | 92101-05012-0H | BOLT, HEX., 5X12 | 1 | |
| 13 | 92101-06012-0G | BOLT, HEX 6 X 12 | 4 | |
| 14 | 94102-08000 | WASHER, PLAIN, 8MM | 4 | |
| 16 | 94001-05080-0S | NUT, HEX., 5MM | 1 | |
| 17 | 95701-08020-00 | BOLT, FLANGE, 8X20 | 4 | |
| 19 | 95701-10030-00 | BOLT, FLANGE, 10X30 | 2 | |
