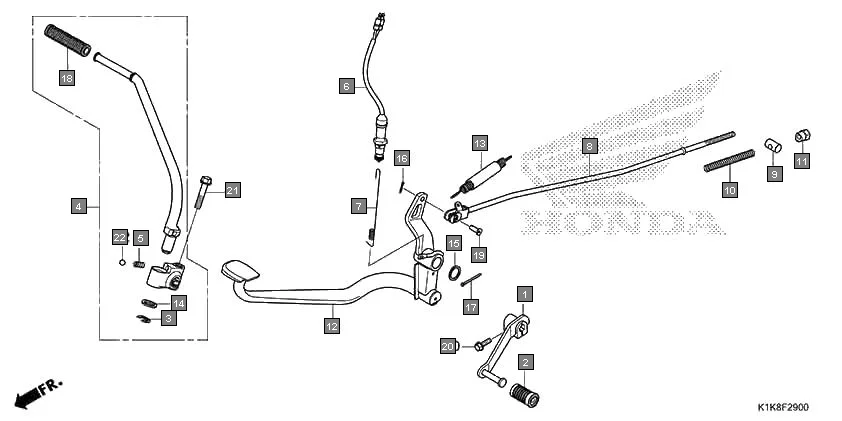

F-29 - PEDAL
HONDA CB Unicorn 160 CBF160AL · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24701-KSP-B10 | PEDAL, GEAR CHANGE | 1 | |
| 2 | 24781-KSP-860 | RUBBER, CHANGE PEDAL | 1 | |
| 3 | 28293-333-000 | CLIP, KICK STARTER ARM | 1 | |
| 4 | 28300-K1K-D00 | ARM ASSY., KICK STARTER | 1 | |
| 5 | 28333-KK0-000 | SPRING, KICK STARTER ARM SET | 1 | |
| 6 | 35350-KSP-D01 | SWITCH ASSY., RR. STOP | 1 | |
| 7 | 35357-KSP-900 | SPRING, STOP SWITCH | 1 | |
| 8 | 43451-K1K-D00 | ROD COMP., RR. BRAKE | 1 | |
| 9 | 43455-KSP-900 | JOINT BRAKE ARM | 1 | |
| 10 | 43456-KSP-900 | SPRING BRAKE ROD | 1 | |
| 11 | 43459-KSP-900 | NUT RR. BRK. ADJUST | 1 | |
| 12 | 46500-K1K-D00 | PEDAL, BRAKE | 1 | |
| 13 | 46510-K21-900 | SPRING SET, BRAKE PEDAL | 1 | |
| 14 | 90505-KRM-860 | WASHER, 15.5 X 22 | 1 | |
| 15 | 90521-028-000 | WASHER, 17X22 | 1 | |
| 16 | 94201-20120 | PIN, SPLIT, 2.0X12 | 1 | |
| 17 | 94201-30300 | PIN, SPLIT 3 X 30MM | 1 | |
| 18 | 95011-51000 | RUBBER, A KICK STARTER | 1 | |
| 19 | 95015-53000 | PIN, C JOINT | 1 | |
| 20 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 1 | |
| 21 | 95701-08040-00 | BOLT, FLANGE, 8 X 40 | 1 | |
| 22 | 96211-08000 | BALL STEEL 8 MM | 1 | |
