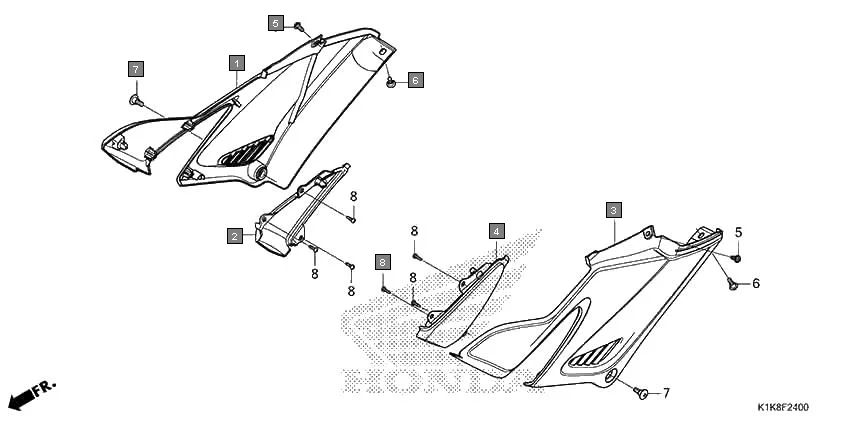

F-24 - SIDE COVER
HONDA CB Unicorn 160 CBF160AL · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83500-K1K-D00ZA | COVER SET, R. SIDE(WL) *NH105* MAT BLACK(#15-#20) | 1 | |
| 2 | 83541-K1K-D00 | COVER, R. SUB | 1 | |
| 3 | 83600-K1K-D00ZA | COVER SET, L. SIDE(WL) *NH105* MAT BLACK(#15-#20) | 1 | |
| 4 | 83641-K1K-D00 | COVER, L. SUB | 1 | |
| 6 | 90102-GB2-720 | SCREW, PAN, 5X16 | 2 | |
| 7 | 90107-KW7-900 | BOLT, FAIRING SETTING | 2 | |
| 8 | 93903-24320 | SCREW, TAPPING, 4X12 | 6 | |
