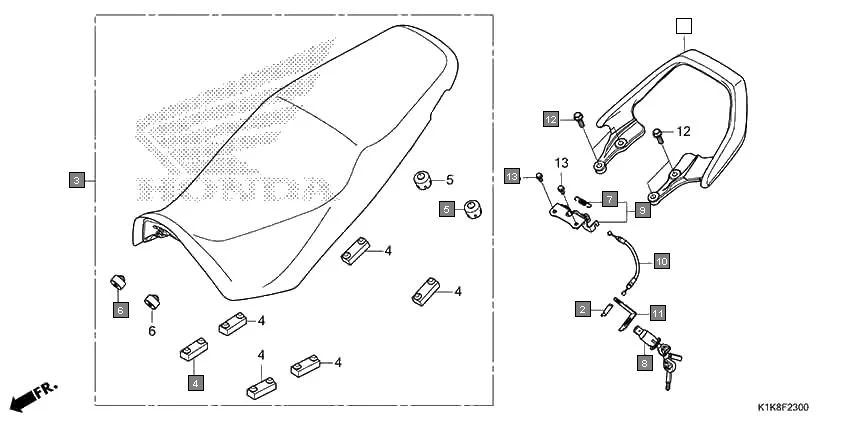

F-23 - SEAT
HONDA CB Unicorn 160 CBF160AL · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50400-K1K-D00ZA | GRIP, RR. *R355M* IMPERIAL RED METALLIC | 1 | |
| 1 | 50400-K1K-D00ZB | GRIP, RR. *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 1 | 50400-K1K-D00ZC | GRIP, RR. *NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 1 | 50400-K1K-D00ZE | GRIP, RR. *NHC45M* SPEAR SILVER METALLIC | 1 | |
| 2 | 75581-GN8-920 | SET SPG LOCK KEY | 1 | |
| 3 | 77200-K1K-D01 | SEAT COMP,DOUBLE | 1 | |
| 4 | 77205-286-000 | RUBBER `B SEAT SETTING | 6 | |
| 5 | 77206-KFN-850 | RUBBER SEAT CUSHION | 2 | |
| 6 | 77206-KTE-910 | RUBBER, SEAT SETTING | 2 | |
| 7 | 77234-K1K-D00 | SPRING, SEAT LOCK | 1 | |
| 8 | 77239-KYJ-T01 | KEY, SEAT LOCK | 1 | |
| 9 | 77250-K1K-D00 | LOCK COMP., SEAT | 1 | |
| 10 | 77260-K1K-D00 | CABLE, SEAT LOCK | 1 | |
| 11 | 77582-K1K-D00 | STAY, SEAT LOCK CABLE | 1 | |
| 12 | 95701-08025-00 | BOLT, FLANGE 8 X 25 | 4 | |
