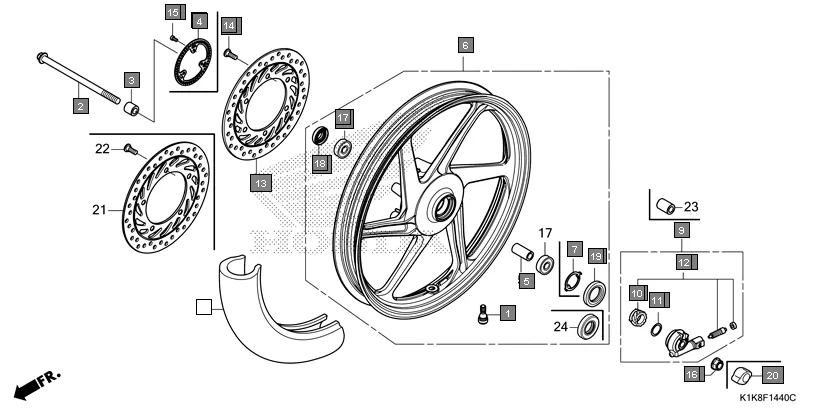

F-14-40 - FRONT WHEEL
HONDA CB Unicorn 160 CBF160AL · 28 parts
Parts in This Assembly (28)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42753-KWF-901 | VALVE, RIM(TRITON) | 1 | |
| 1 | 42753-K24-G11 | VALVE, RIM(ACCURA) | 1 | |
| 2 | 44301-K1K-D10 | AXLE, FR. WHEEL | 1 | |
| 2 | 44301-KSP-900 | AXLE, FRONT WHEEL | 1 | |
| 3 | 44311-KSP-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 4 | 44515-K43-D20 | RING, FR. PULSER | 1 | |
| 5 | 44620-KSP-900 | COLLAR FR AXLE DIST | 1 | |
| 6 | 44650-KSP-D20ZA | WHEEL SUB ASSY., FR. *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 7 | 44680-410-000 | RETAINER, GEAR BOX | 1 | |
| 8 | 44711-KRY-971 | TYRE,FR | 1 | |
| 8 | 44711-KTE-602 | TIRE, FR.(TVS) (80/100-18 M/C 47P) | 1 | |
| 9 | 44800-KSP-900ZC | BOX ASSY., SPEEDOMETER GEAR *NH105* MAT BLACK(#15-#20) | 1 | |
| 10 | 44804-KSP-901 | GEAR, SPEEDOMETER | 1 | |
| 11 | 44809-KPL-900 | WASHER, SPEEDOMETER GEAR | 1 | |
| 12 | 44820-KSP-900 | GEAR SET, SPEEDOMETER | 1 | |
| 13 | 45251-K55-981 | DISK, FR. BRAKE(ENDURANCE) | 1 | |
| 13 | 45251-K0V-AC1 | DISK, FR. BRAKE(ETL) | 1 | |
| 13 | 45251-KSP-861 | DISC, FR. BRAKE | 1 | |
| 13 | 45251-K21-901 | DISK, FR. BRAKE(YUTAKA) | 1 | |
| 14 | 90105-KSP-870 | BOLT, FRONT DISK, 8 X 24 | 6 | |
| 15 | 90131-KYJ-610 | BOLT, TORX, 5X10 | 3 | |
| 16 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 17 | 91051-K15-901 | BEARING, RADIAL BALL, 6301UU (SKF) | 2 | |
| 17 | 91051-K21-902 | BEARING, RADIAL BALL, 6301UU (FAG) | 2 | |
| 17 | 91051-K21-903 | BEARING, RADIAL BALL, 6301UU (NEI) | 2 | |
| 18 | 91251-KPH-901 | DUST SEAL, 21 X 37 X 7 | 1 | |
| 19 | 91258-410-013 | DUST SEAL, 40X50X5(ARAI) | 1 | |
| 20 | 44302-KTT-950 | CAP, AXLE NUT | 1 | |
