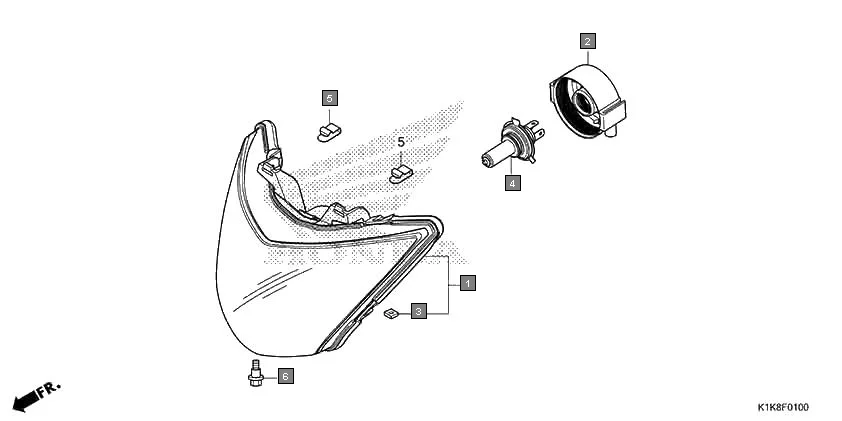

F-1 - HEADLIGHT
HONDA CB Unicorn 160 CBF160AL · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33110-KSP-932 | HEADLIGHT UNIT | 1 | |
| 2 | 33112-KSP-911 | COVER, RUBBER | 1 | |
| 3 | 33128-GBL-003 | NUT, SPECIAL | 1 | |
| 4 | 34901-KTE-D01 | BULB, HEADLIGHT(12V 35/35W) (OSRAM) | 1 | |
| 4 | 34901-KVN-971 | BULB HEAD LIGHT | 1 | |
| 5 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 6 | 90101-KTE-650 | BOLT, ADJUSTING | 1 | |
