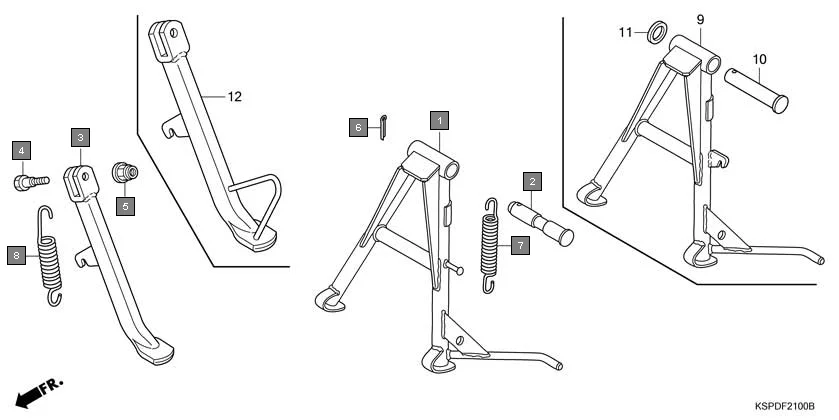

F-21 - STAND
HONDA CB Unicorn CBF150M7 · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50500-KSP-902 | STAND COMP., MAIN | 1 | |
| 2 | 50526-KCT-690 | SHAFT, MAIN STAND PIVOT | 1 | |
| 3 | 50530-KSP-900 | BAR COMP., SIDE STAND | 1 | |
| 4 | 90107-GN1-010 | SCREW SIDE STAND PIVOT | 1 | |
| 5 | 90304-GE8-003 | NUT, U, 10MM(FUSE RASHI) | 1 | |
| 7 | 95014-71702 | SPRING G MAIN STAND | 1 | |
| 8 | 95014-72102 | SPRING, SIDE STAND | 1 | |
