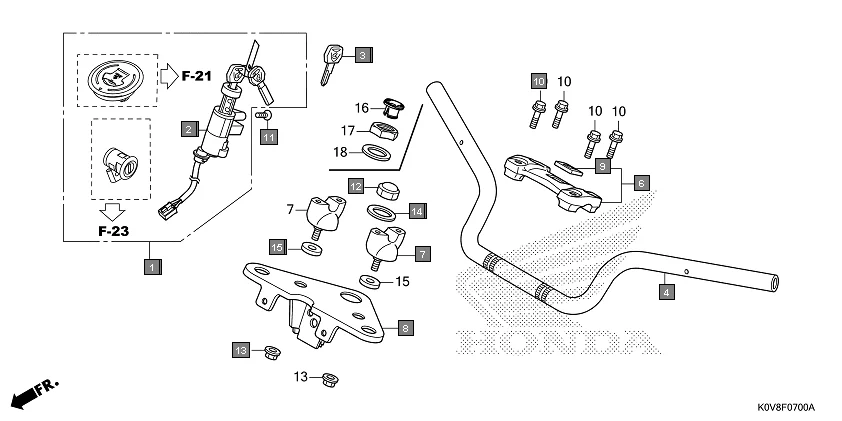

F-7 - HANDLE PIPE/TOP BRIDGE
HONDA CB Shine/ Shine 125 CBF125L · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35010-K0V-A00 | KEY SET(JAY USHIN) | 1 | |
| 1 | 35010-K0V-B00 | KEY SET(MINDA) | 1 | |
| 2 | 35100-K0V-A01 | SWITCH ASSY., COMBINATION & LOCK(JAY USHIN) | 1 | |
| 2 | 35100-K0V-B01 | SWITCH ASSY., COMBINATION & LOCK(MINDA) | 1 | |
| 3 | 35121-K74-N00 | KEY, BLANK | 1 | |
| 4 | 53100-K0V-A00 | PIPE, STEERING HANDLE | 1 | |
| 6 | 53130-K0N-D00ZA | HOLDER COMP., HANDLE UPPER *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 12 | 90304-K63-D30 | NUT, STEERING STEM | 1 | |
