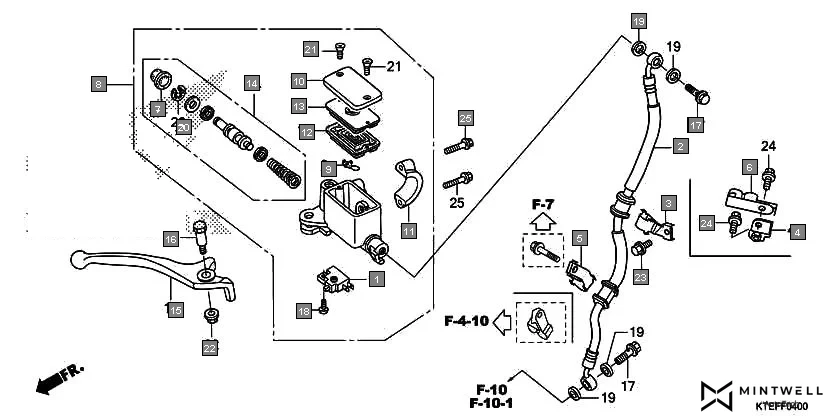

F-4 - FR. BRAKE MASTER CYLINDER
HONDA CB Shine/ Shine 125 CBF125L · 50 parts
Parts in This Assembly (50)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35340-KSP-B51 | SWITCH ASSY., FR. STOP | 1 | |
| 1 | 17910-K0V-A00 | CABLE COMP. A, THROTTLE (HI-LEX) | 1 | |
| 1 | 17910-K0V-B00 | CABLE COMP. A, THROTTLE (SUPRAJIT) | 1 | |
| 2 | 45126-KTE-671 | HOSE COMP. A, FR. BRAKE | 1 | |
| 2 | 45126-KTE-D11 | HOSE COMP., FR. BRAKE (NICHIRIN) | 1 | |
| 2 | 17920-K0V-A01 | CABLE COMP. B, THROTTLE (HI-LEX) | 1 | |
| 2 | 17920-K0V-B00 | CABLE COMP. B, THROTTLE (SUPRAJIT) | 1 | |
| 3 | 45155-KTE-D10 | CLAMPER A, FR. BRAKE HOSE | 1 | |
| 3 | 22870-K0N-600 | CABLE COMP., CLUTCH | 1 | |
| 3 | 22870-K0N-D01 | CABLE COMP., CLUTCH(HI-LEX) | 1 | |
| 4 | 45155-KTE-670 | STAY, BRAKE HOSE CLAMPER | 1 | |
| 5 | 45156-KSP-900 | CLAMPER B, FR. BRAKE HOSE | 1 | |
| 5 | 35130-K0N-D11 | SWITCH ASSY., STARTER & ENGINE STOP | 1 | |
| 5 | 35130-K0N-D01 | SWITCH ASSY., STARTER & ENGINE STOP | 1 | |
| 5 | 35130-K0V-A01 | SWITCH ASSY., STARTER & ENGINE STOP(JAY USHIN) | 1 | |
| 5 | 35130-K0V-A11 | SWITCH ASSY., STARTER & ENGINE STOP(JAY USHIN) | 1 | |
| 6 | 45156-KTE-670 | CLAMPER A, FR. BRAKE HOSE | 1 | |
| 6 | 35200-K0V-A01 | SWITCH ASSY., WINKER (JAY USHIN) | 1 | |
| 6 | 35200-K0N-D01 | SWITCH ASSY., WINKER | 1 | |
| 7 | 45504-410-003 | BOOT COMP. | 1 | |
| 7 | 35330-KYJ-611 | SWITCH ASSY., CLUTCH | 1 | |
| 8 | 45510-K21-921 | CYLINDER SUB ASSY., FR. BRAKE MASTER(NISSIN) | 1 | |
| 8 | 45510-KSP-B52 | CYLINDER SUB ASSY., FR. BRAKE MASTER | 1 | |
| 9 | 45512-MA6-006 | PROTECTOR | 1 | |
| 9 | 45450-K0V-A11 | CABLE COMP., FR. BRAKE(HI-LEX) | 1 | |
| 9 | 45450-K0V-B21 | CABLE COMP., FR. BRAKE (SUPRAJIT) | 1 | |
| 9 | 45450-K0V-B31 | CABLE COMP., FR. BRAKE(ASK) | 1 | |
| 10 | 45513-HA2-006 | CAP, MASTER CYLINDER | 1 | |
| 10 | 53140-K0V-A00 | GRIP COMP., THROTTLE | 1 | |
| 11 | 45517-166-006 | HOLDER, MASTER CYLINDER | 1 | |
| 11 | 53166-KSP-900 | GRIP, L. HANDLE | 1 | |
| 12 | 45520-GE2-006 | DIAPHRAGM | 1 | |
| 12 | 53171-K0N-D10 | BRACKET, R. HANDLE LEVER | 1 | |
| 13 | 45521-K21-901 | PLATE, DIAPHRAGM | 1 | |
| 14 | 45530-KVY-911 | CYLINDER SET, MASTER | 1 | |
| 14 | 45530-471-831 | CYLINDER SET, MASTER | 1 | |
| 15 | 53175-KET-921 | LEVER, R. STEERING HANDLE | 1 | |
| 15 | 53175-K0N-D10 | LEVER COMP., R. HANDLE | 1 | |
| 16 | 90114-KGH-900 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 16 | 53178-K0N-D00 | LEVER COMP., L. HANDLE | 1 | |
| 18 | 90508-K21-921 | SCREW-WASHER, 4X12 | 1 | |
| 18 | 53199-K0N-D10 | SPRING, BRAKE LEVER RETURN | 1 | |
| 20 | 90651-MA5-671 | CIRCLIP | 1 | |
| 21 | 93600-04012-1G | SCREW, FLAT, 4X12 | 2 | |
| 22 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 24 | 90115-KTE-DB0 | BOLT, R. HANDLE LEVER PIVOT | 1 | |
| 25 | 96001-06022-07 | BOLT, FLANGE, SH.6X22 | 2 | |
| 27 | 90502-KTE-DB0 | WASHER, 5MM | 1 | |
| 28 | 93892-05016-07 | SCREW-WASHER, 5X16 | 2 | |
| 29 | 93892-05025-07 | SCREW, WASHER, 5X25 | 2 | |
