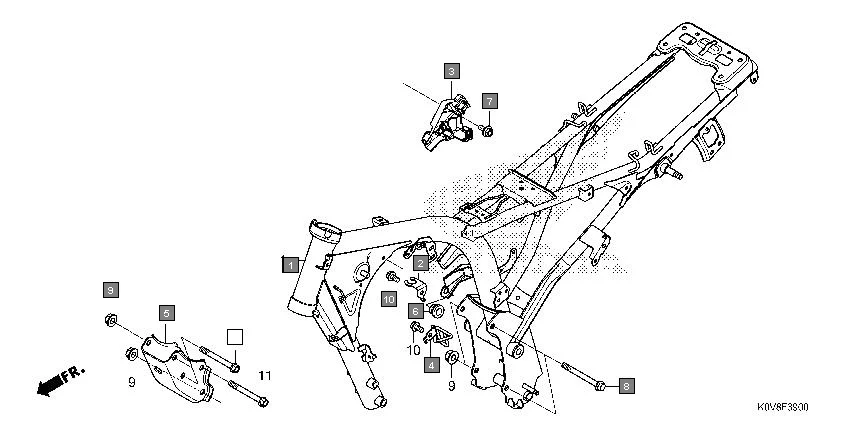

F-39 - FRAME BODY
HONDA CB Shine/ Shine 125 CBF125L · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-K0V-A00 | BODY COMP., FRAME | 1 | |
| 1 | 50100-K0V-A10 | BODY COMP., FRAME | 1 | |
| 2 | 50116-K0N-D00 | STAY, STOP SWITCH | 1 | |
| 3 | 50182-K0N-D00 | GUIDE, CABLE | 1 | |
| 4 | 50296-K0N-D00 | GUIDE, DRAIN TUBE | 1 | |
| 5 | 50351-K0N-D00 | PLATE, FR. ENGINE HANGER | 1 | |
| 6 | 83551-376-000 | GROMMET, SIDE COVER | 1 | |
| 7 | 90111-162-000 | BOLT, FLANGE, 6MM | 1 | |
| 8 | 90130-KPM-000 | BOLT, FLANGE, 10X100 | 2 | |
| 9 | 94050-10000 | NUT, FLANGE, 10MM | 6 | |
| 10 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 2 | |
| 11 | 95801-10090-08 | BOLT, FLANGE, 10X90 | 4 | |
