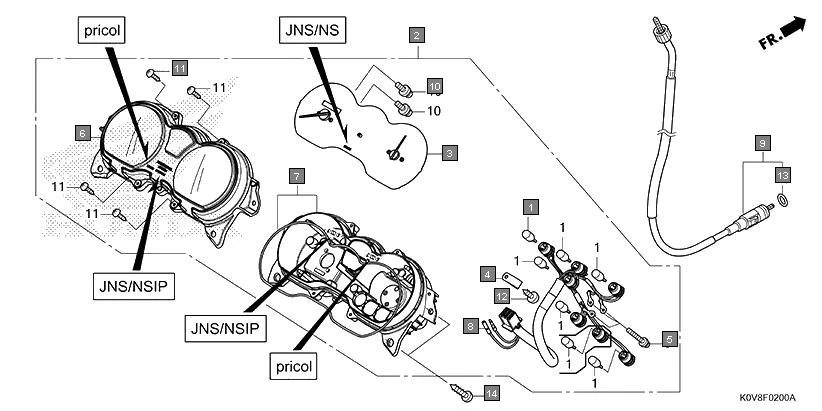

F-2 - METER
HONDA CB Shine/ Shine 125 CBF125L · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34908-KVE-900 | BULB, WEDGE BASE T10 (12V - 1.7 W) | 6 | |
| 1 | 34910-KWA-930 | BULB WEDGE BASE (T10 12V, 1.7W) | 6 | |
| 2 | 37100-K0V-A21 | METER ASSY., COMBINATION(KPH) (JNS/NSIP) | 1 | |
| 2 | 37100-K0V-B41 | METER ASSY., COMBINATION(KPH) (PRICOL) | 1 | |
| 3 | 37210-K0V-A21 | METER COMP., SPEED & FUEL (JNS/NSIP) | 1 | |
| 3 | 37210-K0V-B41 | METER COMP., SPEED & FUEL (PRICOL) | 1 | |
| 4 | 37215-KEV-920 | CLAMP (JNS/NSIP) | 1 | |
| 4 | 37215-KTE-D02 | CLAMP(PRICOL) | 1 | |
| 5 | 37305-KE5-008 | SCREW-WASHER, 3X22 | 3 | |
| 5 | 90105-K0V-B01 | SCREW-WASHER, 3X40 (PRICOL) | 3 | |
| 6 | 37310-K0V-A01 | LENS ASSY.(JNS/NSIP) | 1 | |
| 6 | 37310-K0V-B01 | LENS ASSY.(PRICOL) | 1 | |
| 7 | 37610-K0V-A21 | CASE ASSY., UNDER(JNS/NSIP) | 1 | |
| 7 | 37610-K0V-B41 | CASE ASSY., UNDER(PRICOL) | 1 | |
| 8 | 37619-K0V-A21 | SOCKET COMP.(JNS/NSIP) | 1 | |
| 8 | 37619-K0V-B41 | SOCKET COMP.(PRICOL) | 1 | |
| 9 | 44830-K14-901 | CABLE COMP., SPEEDOMETER | 1 | |
| 10 | 90035-166-008 | SCREW-WASHER, SPECIAL, 4X10 | 2 | |
| 10 | 90101-KTE-D02 | SCREW-WASHER, SPECIAL(PRICOL) | 2 | |
| 11 | 90101-KY6-008 | SCREW, TAPPING, 3X14 | 4 | |
| 11 | 90104-KTE-D02 | SCREW, TAPPING, 3X14 | 4 | |
| 12 | 90109-MZ5-008 | SCREW, TAPPING, 4 X 14 | 1 | |
| 12 | 90103-KTE-D02 | SCREW, TAPPING, 4X14 | 1 | |
| 13 | 91256-KK3-840 | O-RING, 10X1.5 | 1 | |
| 14 | 93903-35310 | SCREW TAPPING 5X16 | 4 | |
