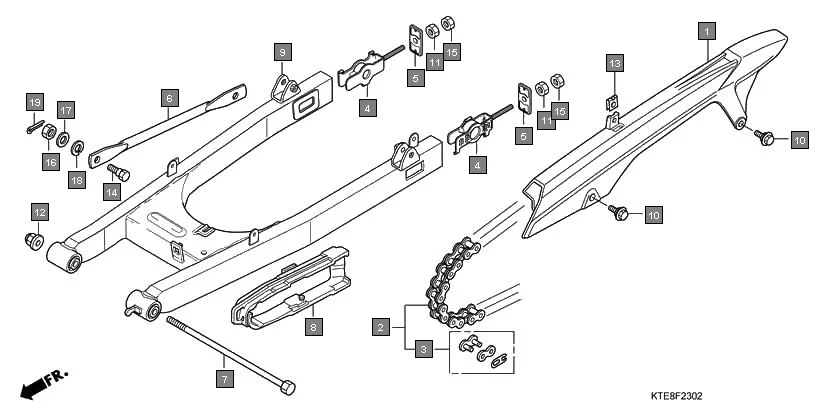

F-23-2 - SWINGARM(3)
HONDA CBF Stunner CBF1259 · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-KWF-950 | CASE, DRIVE CHAIN | 1 | |
| 2 | 40530-KWF-961 | CHAIN, DRIVE(LGB R428HBS-118L) | 1 | |
| 3 | 40531-KWF-961 | JOINT, DRIVE CHAIN(LGB) | 1 | |
| 5 | 40546-KWF-950 | CAP, SWINGARM END | 2 | |
| 9 | 52200-KWF-950 | SWINGARM SUB ASSY., RR. | 1 | |
