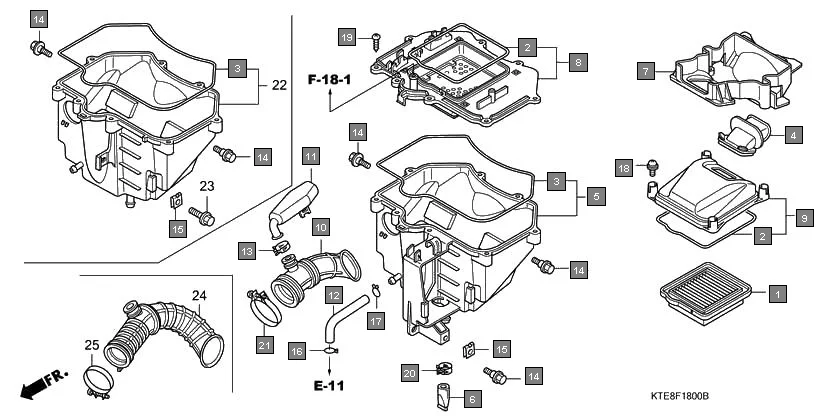

F-18 - AIR CLEANER
HONDA CBF Stunner CBF1259 · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17211-KTE-910 | ELEMENT COMP., AIR CLEANER | 1 | |
| 2 | 17214-KTE-910 | SEAL B AIR/C | 2 | |
| 3 | 17215-KSP-900 | SEAL A AIR/C | 1 | |
| 4 | 17219-KTE-910 | DUCT AIR C | 1 | |
| 5 | 17225-KTE-910 | CASE SUB ASSY., AIR CLEANER | 1 | |
| 6 | 17227-KTE-910 | V.TUBE 11X15X40 | 1 | |
| 7 | 17234-KTE-910 | COVER, AIR CLEANER DUCT | 1 | |
| 8 | 17235-KTE-910 | HOLDER SUB ASSY., AIR CLEANER | 1 | |
| 9 | 17245-KTE-910 | COVER SUB ASSY., AIR CLEANER | 1 | |
| 10 | 17253-KTE-910 | TUBE, AIR CLEANER CONNECTING | 1 | |
| 11 | 17311-KTE-910 | RESONATOR | 1 | |
| 12 | 17371-KTE-910 | TUBE BREATHER | 1 | |
| 13 | 19509-GE2-003 | CLAMP, D19 TUBE | 1 | |
| 14 | 90111-162-000 | BOLT, FLANGE, 6MM | 3 | |
| 15 | 90320-KTE-910 | NUT, SPRING, 6MM | 1 | |
| 16 | 90651-KM9-000 | CLIP B14 TUBE | 1 | |
| 17 | 90651-MK3-780 | CLIP, B 12.5 TUBE | 1 | |
| 18 | 93893-05016-00 | SCREW WASHER 5X16 | 4 | |
| 19 | 93903-25380 | SCREW TAPPING 5X16 | 8 | |
| 20 | 91406-KFN-850 | CLAMP, D14.5 TUBE | 1 | |
| 21 | 95018-54251 | BAND, 54 AIR/C. CONN. TUBE | 1 | |
