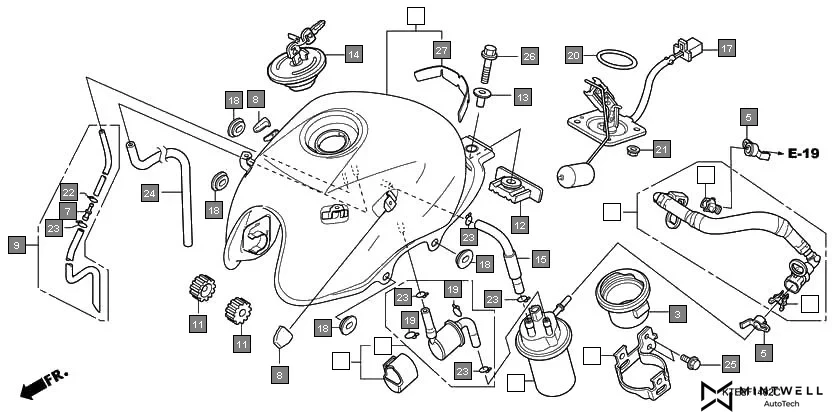

F-14-2 - FUEL TANK(3)
HONDA CBF Stunner CBF1259 · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06170-KWF-960 | STRAINER ASSY., FUEL | 1 | |
| 2 | 16700-KWF-961 | PUMP ASSY., FUEL | 1 | |
| 3 | 16711-KWF-950 | RUBBER, FUEL PUMP SHOCK | 1 | |
| 4 | 16712-KWF-960 | STAY, FUEL PUMP | 1 | |
| 5 | 16718-KTW-900 | DAMPER A, CONNECTOR | 2 | |
| 6 | 17500-KWF-960ZA | TANK SET, FUEL *NH1* BLACK | 1 | |
| 10 | 17570-KWF-951 | HOSE COMP., FUEL FEED | 1 | |
| 15 | 17682-KWF-950 | TUBE, FUEL PUMP BREATHER | 1 | |
| 16 | 17711-S0X-A31 | RETAINER | 2 | |
| 17 | 37800-KWF-950 | FUEL UNIT | 1 | |
| 19 | 90652-MB1-000 | CLIP, TUBE | 2 | |
| 28 | 06160-KWF-305 | FILTER KIT, FUEL | 1 | |
