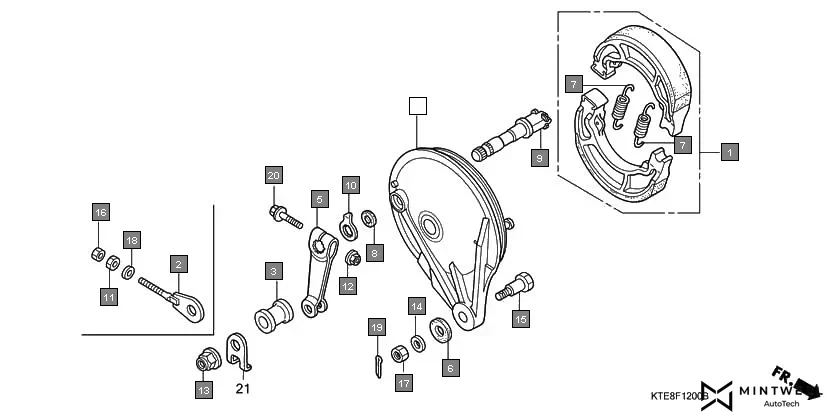

F-12 - REAR BRAKE PANEL
HONDA CBF Stunner CBF1259 · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 40543-KTE-910 | ADJUSTER COMP., R. CHAIN | 1 | |
| 3 | 42313-KTE-910 | COLLAR, RR. BRAKE PANEL SIDE | 1 | |
| 4 | 43100-KTE-910ZA | PANEL COMP., RR. BRAKE *NH35M* CLOUD SILVER METALLIC | 1 | |
| 5 | 43410-KCT-690 | ARM, REAR BRAKE | 1 | |
| 6 | 43434-ME1-670 | RUBBER, STOPPER ARM | 1 | |
| 10 | 45145-KFM-900 | INDICATOR, FR. BRK | 1 | |
| 11 | 90302-KBP-900 | NUT SPL 6 MM | 1 | |
| 12 | 90302-KTE-911 | NUT FLANGE PT 6MM | 1 | |
| 13 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 14 | 90505-425-000 | WASHER, 8 MM | 1 | |
| 15 | 92811-10000 | BOLT A BRAKE STOPPER | 1 | |
| 17 | 94001-08000-0S | NUT, HEX., 8 MM | 1 | |
| 18 | 94101-06000 | WASHER, PLAIN, 6 MM | 1 | |
| 19 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
