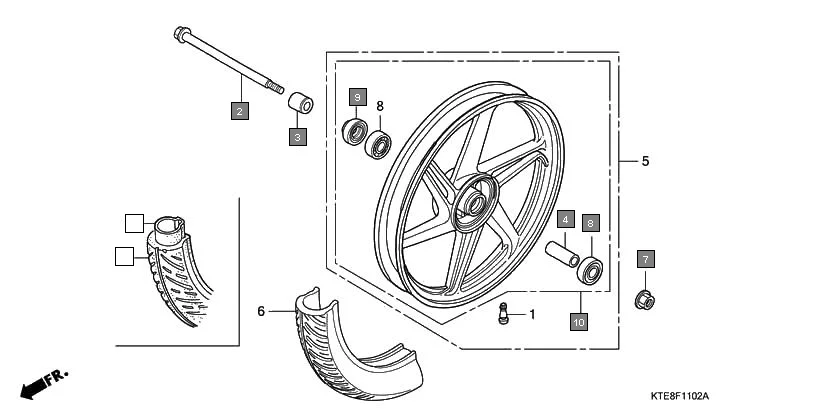

F-11-2 - FRONT WHEEL(3)
HONDA CBF Stunner CBF1259 · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 44301-KPL-900 | AXLE, FRONT WHEEL | 1 | |
| 3 | 44311-KSP-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 4 | 44620-KSP-900 | COLLAR FR AXLE DIST | 1 | |
| 8 | 96140-63010-10 | BEARING, RADIAL BALL, 6301U | 2 | |
| 9 | 91251-KPH-901 | DUST SEAL, 21 X 37 X 7 | 1 | |
| 10 | 44650-KTE-950 | WHEEL SUB ASSY., FR. | 1 | |
| 11 | 44711-KFN-852 | TIRE, FR.(2.75-18 42P) | 1 | |
| 12 | 44712-KFN-852 | TUBE(2.75-18) | 1 | |
