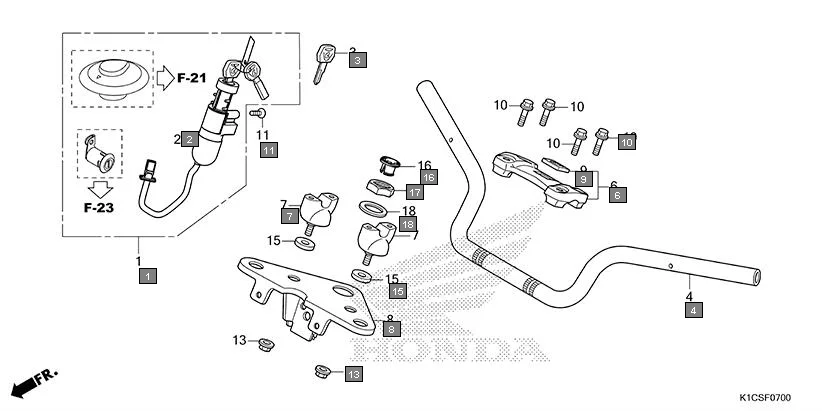

F-7 - HANDLE PIPE/TOP BRIDGE
HONDA Livo CBF110SBES · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35010-K1C-A20 | KEY SET | 1 | |
| 2 | 35100-K0V-AJ1 | SWITCH ASSY., COMBINATION & LOCK(JAY USHIN) | 1 | |
| 3 | 35121-KWS-900 | KEY, BLANK(JAY USHIN) | 1 | |
| 4 | 53100-K1C-A40 | PIPE, STEERING HANDLE | 1 | |
| 6 | 53130-K0N-D00ZA | HOLDER COMP., HANDLE UPPER *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 7 | 53130-KTE-910 | HOLDER HNDL UNDER | 2 | |
| 8 | 53230-KTE-650ZA | BRIDGE COMP., FORK TOP *NH1* BLACK | 1 | |
| 9 | 86150-KWS-601 | EMBLEM, PRODUCT(SJS) | 1 | |
| 10 | 90117-383-000 | BOLT, FLANGE, 6X28 | 4 | |
| 11 | 90164-KPL-900 | SCREW, FLAT, U LOCK, 6X12 | 2 | |
| 13 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 2 | |
| 15 | 90521-427-770 | WASHER 10.3 MM | 2 | |
| 16 | 53232-K43-D00 | CAP, STEERING NUT | 1 | |
| 17 | 90304-K0N-D80 | NUT, STEERING STEM | 1 | |
| 18 | 90503-K74-N00 | WASHER, STEERING STEM | 1 | |
