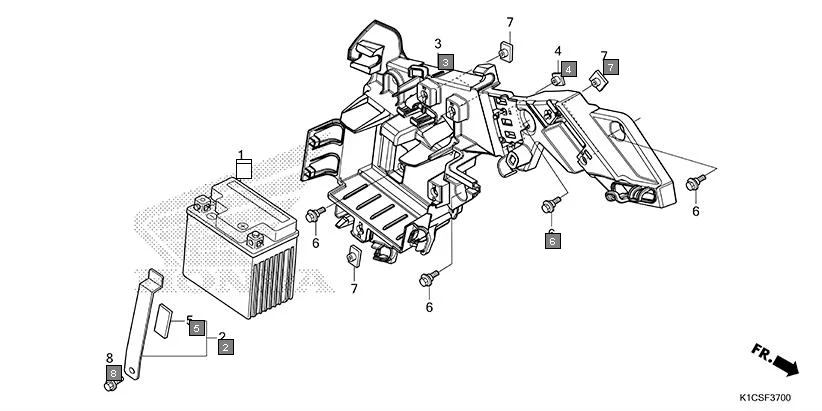

F-37 - BATTERY/BATTERY BOX
HONDA Livo CBF110SBES · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-KRP-N41 | BATTERY ASSY MF 5 | 1 | |
| 1 | 31500-KSP-B51 | BATTERY(ATZ5L)(AMARA RAJA) | 1 | |
| 2 | 50326-K0N-D00 | BAND, BATTERY | 1 | |
| 3 | 50385-K0V-A01 | BOX, BATTERY | 1 | |
| 4 | 61304-MGS-D70 | NUT, SPECIAL, 5MM | 2 | |
| 5 | 77211-KVE-900 | CUSHION RR. COWL | 1 | |
| 7 | 90311-K0N-D80 | NUT, 6MM | 5 | |
| 8 | 95701-06010-08 | BOLT, FLANGE, 6X10 | 1 | |
