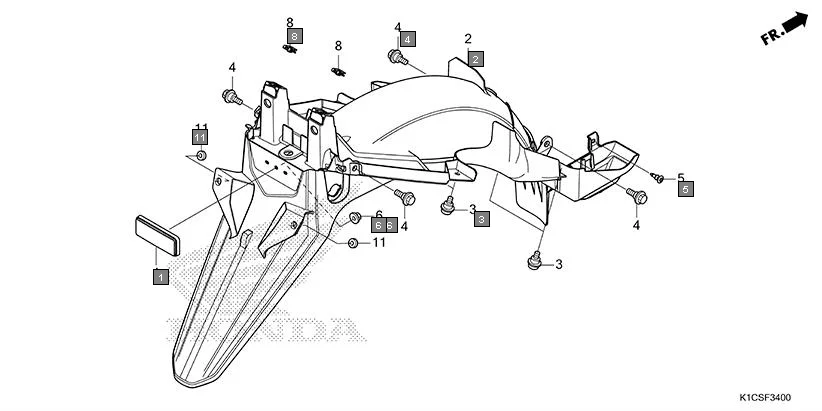

F-34 - REAR FENDER
HONDA Livo CBF110SBES · 3 parts
Parts in This Assembly (3)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33741-KPL-902 | REFLECTOR, REFLEX | 1 | |
| 2 | 80101-K1C-D00 | FENDER, RR. | 1 | |
| 5 | 90116-K3V-N01 | RIVET, PUSH, 6MM | 1 | |
