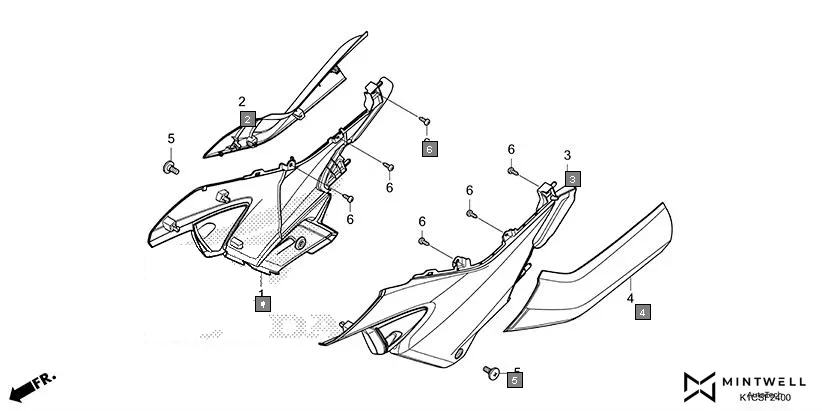

F-24 - SIDE COVER
HONDA Livo CBF110SBES · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83500-K1C-DC0ZA | COVER SET, R. SIDE(WL) *TYPE1* | 1 | |
| 2 | 83502-K1C-D00ZG | SUB COVER, R. SIDE *NHC41P* PEARL PRECIOUS WHITE | 1 | |
| 2 | 83510-K1C-A80ZA | COVER SET, R. SIDE SUB(WL) *TYPE3* | 1 | |
| 2 | 83510-K1C-A80ZB | COVER SET, R. SIDE SUB(WL) *TYPE2* | 1 | |
| 2 | 83510-K1C-A80ZC | COVER SET, R. SIDE SUB(WL) *TYPE1* | 1 | |
| 3 | 83600-K1C-A20ZA | COVER SET, L. SIDE(WL) *TYPE1* | 1 | |
| 4 | 83602-K1C-D00ZG | SUB COVER, L. SIDE*NHC41P* PEARL PRECIOUS WHITE | 1 | |
| 4 | 83610-K1C-A80ZA | COVER SET, L. SIDE SUB(WL)*TYPE3* | 1 | |
| 4 | 83610-K1C-A80ZB | COVER SET, L. SIDE SUB(WL)*TYPE2* | 1 | |
| 4 | 83610-K1C-A80ZC | COVER SET, L. SIDE SUB(WL)*TYPE1* | 1 | |
| 6 | 93903-24320 | SCREW, TAPPING, 4X12 | 6 | |
