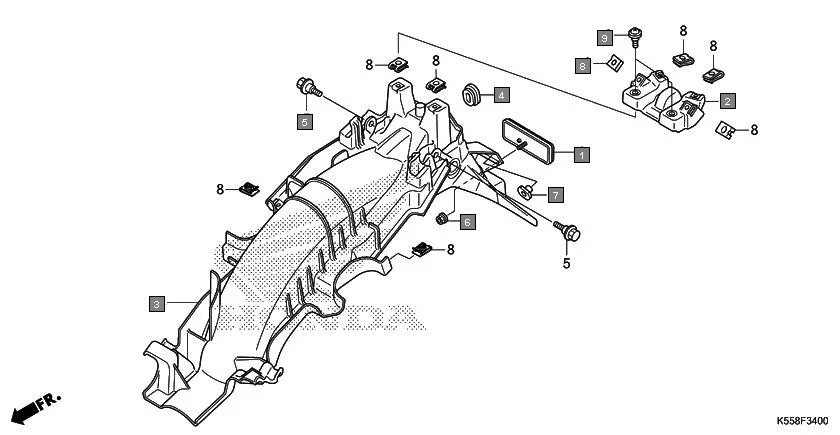

F-34 - REAR FENDER
HONDA Livo CBF110H · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33741-KPL-902 | REFLECTOR, REFLEX | 1 | |
| 2 | 80101-K55-600 | STAY, TAILLIGHT | 1 | |
| 3 | 80110-K55-900ZA | FENDER SET, RR(WL)*TYPE1* | 1 | |
| 4 | 83551-KWS-900 | GROMMET, TAILLIGHT | 1 | |
| 7 | 90311-KTE-910 | NUT REAR FENDER | 2 | |
| 9 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 2 | |
