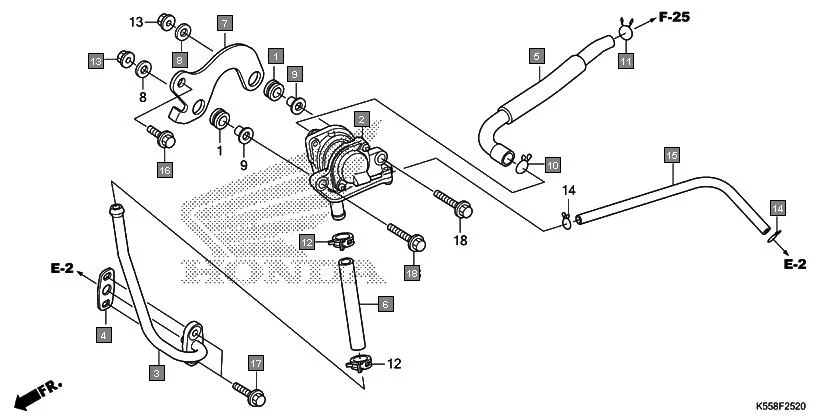

F-25-20 - AIR SUCTION VALVE
HONDA Livo CBF110H · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17622-GB7-900 | RUBBER, CUSHION | 2 | |
| 2 | 18600-K23-901 | VALVE ASSY., AIR SUCTION | 1 | |
| 3 | 18640-K14-900 | PIPE COMP., AIR FEED | 1 | |
| 4 | 18645-KPH-C00 | GASKET AIR FEED PIPE | 1 | |
| 5 | 18651-K14-900 | TUBE A, AIR SUCTION VALVE | 1 | |
| 6 | 18652-KZA-W00 | TUBE B ASV | 1 | |
| 7 | 50535-KZA-W00 | BRKT ASV | 1 | |
| 8 | 90450-ZA0-000 | WASHER, PLAIN, 6 X 1.2 | 2 | |
| 9 | 90501-KC2-750 | WASHER, REGULATOR SETTING | 2 | |
| 10 | 90651-K14-900 | CLIP, TUBE(B15) | 1 | |
| 11 | 90651-MK3-780 | CLIP, B 12.5 TUBE | 1 | |
| 12 | 90678-K14-600 | CLIP, HOSE | 2 | |
| 13 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 14 | 90651-KWP-F00 | CLIP, TUBE(B7) | 2 | |
| 15 | 95005-35250-20 | TUBE, 3.5X250(95005-35001-20M) | 1 | |
| 16 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 1 | |
| 17 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
| 18 | 96001-06028-00 | BOLT, FLANGE, SH. 6X28 | 2 | |
