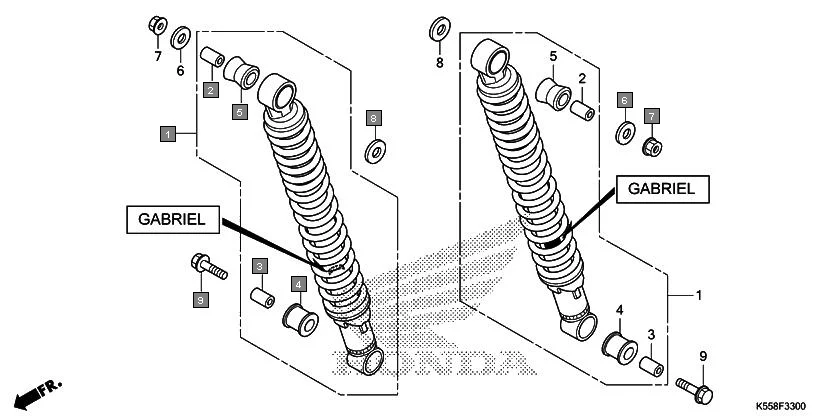

F-33 - REAR CUSHION(GABRIEL)
HONDA Livo CBF110H · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-K55-952 | CUSHION ASSY., RR.(GABRIEL) | 2 | |
| 2 | 52486-KWS-901 | COLLAR, RUBBER BUSH(GABRIEL) | 2 | |
| 3 | 52487-KWS-901 | COLLAR, RUBBER BUSH(GABRIEL) | 2 | |
| 4 | 52489-K23-901 | BUSH, RUBBER(GABRIEL) | 2 | |
| 5 | 52489-KWS-901 | BUSH, RUBBER(GABRIEL) | 2 | |
