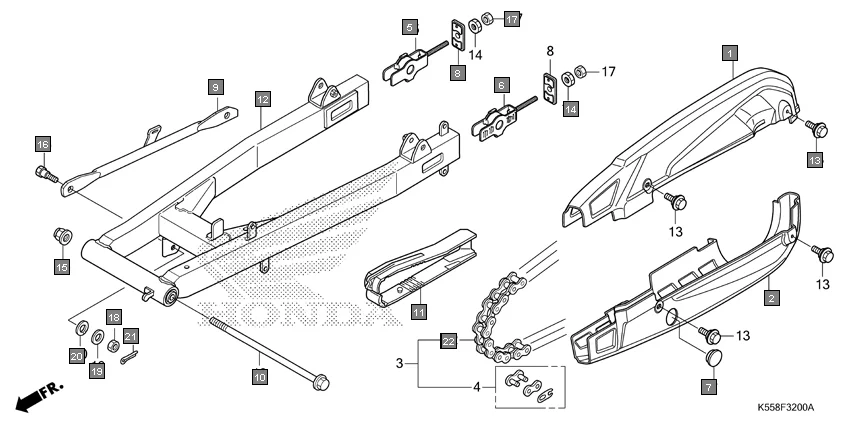

F-32 - SWINGARM
HONDA Livo CBF110H · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-K14-900 | CASE, DRIVE CHAIN UPPER | 1 | |
| 2 | 40520-K14-900 | CASE, DRIVE CHAIN LOWER | 1 | |
| 5 | 40543-K14-900 | ADJUSTER COMP., R. CHAIN | 1 | |
| 6 | 40544-K14-900 | ADJUSTER COMP., L. CHAIN | 1 | |
| 7 | 40545-KWV-010 | CAP, CHAIN CASE PEEP HOLE | 1 | |
| 8 | 40546-KWF-900 | CAP, SWINGARM END | 2 | |
| 9 | 43431-K55-970 | ARM, RR. BRAKE STOPPER | 1 | |
| 10 | 52101-KZA-W00 | BOLT,SWINGARM PIVOT | 1 | |
| 11 | 52170-K55-970 | SLIDER, CHAIN | 1 | |
| 12 | 52200-K55-970 | SWINGARM SUB ASSY., RR. | 1 | |
| 14 | 90302-KBP-900 | NUT SPL 6 MM | 2 | |
| 16 | 92812-10000 | BOLT A BRAKE STOPPER ARM | 1 | |
| 17 | 94001-06000-0S | NUT, HEX., 6 MM | 2 | |
| 19 | 94101-08000 | WASHER, PLAIN, 8MM | 1 | |
| 20 | 94111-10000 | WASHER, SPRING, 10MM | 1 | |
| 22 | 40530-K55-951 | CHAIN, DRIVE(DAIDO) (DID420ADV-118LE) | 1 | |
| 22 | 40530-K55-952 | CHAIN, DRIVE(LGB) (LGB R420OR-118LE) | 1 | |
| 22 | 40530-K55-953 | CHAIN, DRIVE(TIDC) (TIDC420XR-118LE) | 1 | |
