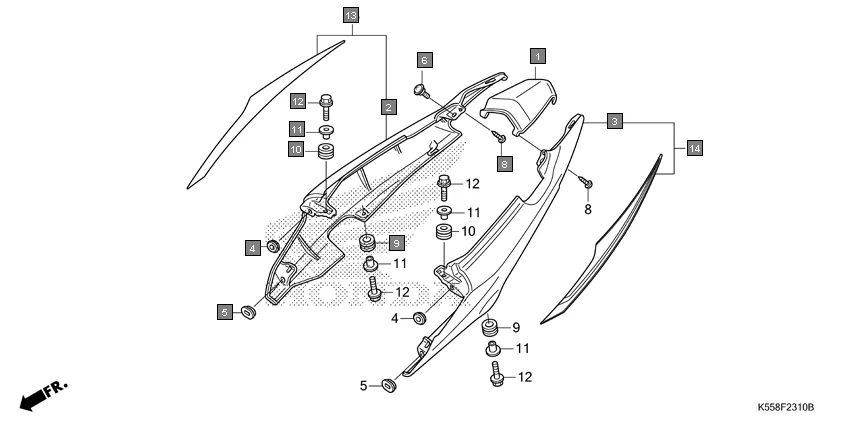

F-23-10 - SIDE COWL
HONDA Livo CBF110H · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77236-K55-600ZA | COWL, CENTER RR. *YR333M* SUNSET BROWN METALLIC | 1 | |
| 1 | 77236-K55-600ZB | COWL, CENTER RR. *PB396M* ATHLETIC BULE METALLIC | 1 | |
| 1 | 77236-K55-600ZC | COWL, CENTER RR. *NH1* BLACK | 1 | |
| 1 | 77236-K55-600ZD | COWL, CENTER RR.*NHB63P* PEARL AMAZING WHITE | 1 | |
| 1 | 77236-K55-600ZE | COWL, CENTER RR. *R355M*.IMPERIAL RED METALLIC | 1 | |
| 1 | 77236-K55-600ZF | COWL, CENTER RR. *NH303M*. MAT AXIS GRAY METALLIC | 1 | |
| 2 | 77246-K55-600ZE | COWL, R. SIDE *R355M*.IMPERIAL RED METALLIC | 1 | |
| 2 | 77246-K55-600ZF | COWL, R. SIDE *NH303M*. MAT AXIS GRAY METALLIC | 1 | |
| 2 | 77246-K55-600ZA | COWL, R. SIDE *YR333M* SUNSET BROWN METALLIC | 1 | |
| 2 | 77246-K55-600ZB | COWL, R. SIDE *PB396M* ATHLETIC BULE METALLIC | 1 | |
| 2 | 77246-K55-600ZC | COWL, R. SIDE *NH1* BLACK | 1 | |
| 2 | 77246-K55-600ZD | COWL, R. SIDE *NHB63P* PEARL AMAZING WHITE | 1 | |
| 3 | 77256-K55-600ZA | COWL, L. SIDE *YR333M* SUNSET BROWN METALLIC | 1 | |
| 3 | 77256-K55-600ZB | COWL, L. SIDE *PB396M* ATHLETIC BULE METALLIC | 1 | |
| 3 | 77256-K55-600ZC | COWL, L. SIDE *NH1* BLACK | 1 | |
| 3 | 77256-K55-600ZD | COWL, L. SIDE *NHB63P* PEARL AMAZING WHITE | 1 | |
| 3 | 77256-K55-600ZE | COWL, L. SIDE *R355M*.IMPERIAL RED METALLIC | 1 | |
| 3 | 77256-K55-600ZF | COWL, L. SIDE *NH303M*. MAT AXIS GRAY METALLIC | 1 | |
| 9 | 11344-MB0-000 | GROMMET A, REAR COVER | 2 | |
| 10 | 83545-KCJ-690 | RUBBER, SIDE COVER | 2 | |
| 11 | 90501-KPP-T00 | COLLAR, RR. MASTER CYLINDER CUP | 4 | |
| 13 | 77240-K55-960ZA | COWL SET, R. SIDE(WL) *TYPE6* | 1 | |
| 13 | 77240-K55-960ZB | COWL SET, R. SIDE(WL) *TYPE5* | 1 | |
| 13 | 77240-K55-960ZD | COWL SET, R. SIDE(WL) *TYPE3* | 1 | |
| 13 | 77240-K55-960ZF | COWL SET, R. SIDE(WL) *TYPE1* | 1 | |
| 14 | 77250-K55-960ZA | COWL SET, L. SIDE(WL) *TYPE6* | 1 | |
| 14 | 77250-K55-960ZB | COWL SET, L. SIDE(WL) *TYPE5* | 1 | |
| 14 | 77250-K55-960ZD | COWL SET, L. SIDE(WL) *TYPE3* | 1 | |
| 14 | 77250-K55-960ZF | COWL SET, L. SIDE(WL) *TYPE1* | 1 | |
