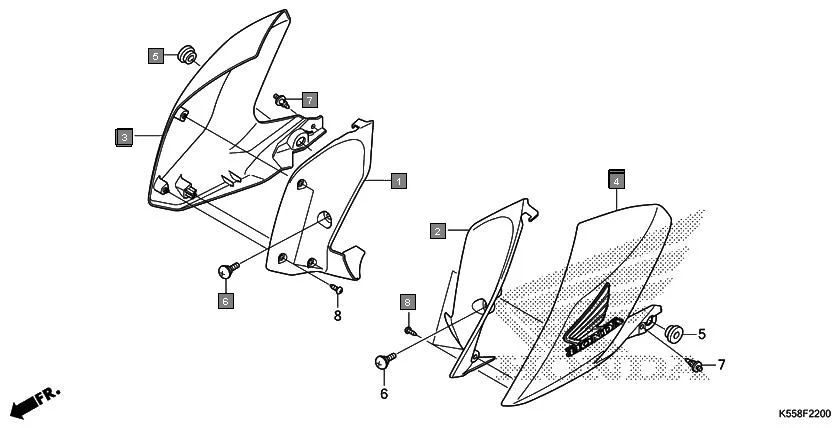

F-22 - SHROUD
HONDA Livo CBF110H · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50265-K55-600 | SHROUD, R. INNER | 1 | |
| 2 | 50275-K55-600 | SHROUD, L. INNER | 1 | |
| 3 | 64500-K55-600ZA | SHROUD SET, R. OUTER(WL) *YR333M* SUNSET BROWN METALLIC | 1 | |
| 3 | 64500-K55-600ZB | SHROUD SET, R. OUTER(WL) *PB396M* ATHLETIC BULE METALLIC | 1 | |
| 3 | 64500-K55-600ZC | SHROUD SET, R. OUTER(WL) *NH1* BLACK | 1 | |
| 3 | 64500-K55-600ZD | SHROUD SET, R. OUTER(WL) *NHB63P* PEARL AMAZING WHITE | 1 | |
| 3 | 64500-K55-600ZE | SHROUD SET, R. OUTER(WL) *R355M*.IMPERIAL RED METALLIC | 1 | |
| 3 | 64500-K55-600ZF | SHROUD SET, R. OUTER(WL) *NH303M*. MAT AXIS GRAY METALLIC | 1 | |
| 4 | 64600-K55-600ZE | SHROUD SET, L. OUTER(WL) *R355M*.IMPERIAL RED METALLIC | 1 | |
| 4 | 64600-K55-600ZF | SHROUD SET, L. OUTER(WL) *NH303M*. MAT AXIS GRAY METALLIC | 1 | |
| 4 | 64600-K55-600ZA | SHROUD SET, L. OUTER(WL) *YR333M* SUNSET BROWN METALLIC | 1 | |
| 4 | 64600-K55-600ZB | SHROUD SET, L. OUTER(WL) *PB396M* ATHLETIC BULE METALLIC | 1 | |
| 4 | 64600-K55-600ZC | SHROUD SET, L. OUTER(WL) *NH1* BLACK | 1 | |
| 4 | 64600-K55-600ZD | SHROUD SET, L. OUTER(WL) *NHB63P* PEARL AMAZING WHITE | 1 | |
| 6 | 90104-KT2-000 | SCREW, SPECIAL, 6X14 | 2 | |
| 7 | 90116-SP0-003 | CLIP, BUMPER SEAL | 2 | |
