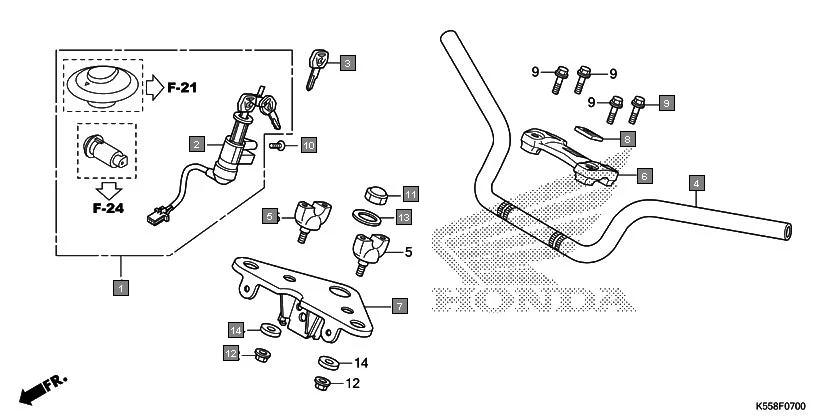

F-7 - HANDLE PIPE/TOP BRIDGE
HONDA Livo CBF110G · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35010-K63-D30 | KEY SET | 1 | |
| 2 | 35100-K14-901 | SWITCH ASSY., COMBINATION & LOCK(JAY USHIN) | 1 | |
| 3 | 35121-KWS-900 | KEY, BLANK(JAY USHIN) | 1 | |
| 4 | 53100-K55-600ZB | PIPE, STEERING HANDLE *NH105*...MAT BLACK (#15-#20) | 1 | |
| 5 | 53130-KTE-910 | HOLDER HNDL UNDER | 2 | |
| 6 | 53131-KWF-900ZA | HOLDER, HANDLE UPPER *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 7 | 53230-K23-900ZA | BRIDGE COMP., FORK TOP *NH105* MAT BLACK | 1 | |
| 8 | 86150-KWS-601 | EMBLEM, PRODUCT(SJS) | 1 | |
| 9 | 90117-383-000 | BOLT, FLANGE, 6X28 | 4 | |
| 10 | 90164-KPL-900 | SCREW, FLAT, U LOCK, 6X12 | 2 | |
| 11 | 90304-K63-D30 | NUT, STEERING STEM | 1 | |
| 12 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 2 | |
| 13 | 90503-KSP-900 | WASHER, STEERING STEM | 1 | |
| 14 | 90521-427-770 | WASHER 10.3 MM | 2 | |
