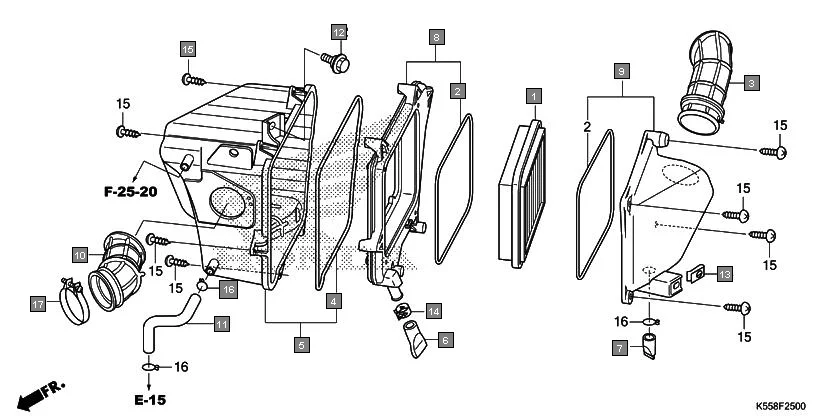

F-25 - AIR CLEANER
HONDA Livo CBF110G · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17211-K14-901 | ELEMENT COMP., AIR CLEANER | 1 | |
| 2 | 17214-KVX-600 | SEAL,AIR/C | 2 | |
| 3 | 17219-K63-D30 | DUCT, AIR CLEANER | 1 | |
| 4 | 17219-KTC-900 | SEAL, A/I CLEANER | 1 | |
| 5 | 17225-K23-901 | CASE SUB ASSY., AIR CLEANER | 1 | |
| 6 | 17227-KTE-910 | V.TUBE 11X15X40 | 1 | |
| 7 | 17234-KCC-941 | TUBE, AIR CLEANER DRAIN | 1 | |
| 8 | 17235-K14-900 | HOLDER SUB ASSY., AIR CLEANER | 1 | |
| 9 | 17245-K23-901 | COVER SUB ASSY., AIR CLEANER | 1 | |
| 10 | 17253-K14-900 | TUBE, AIR CLEANER CONNECTING | 1 | |
| 11 | 17371-K63-D30 | TUBE, BREATHER | 1 | |
| 12 | 90111-162-000 | BOLT, FLANGE, 6MM | 1 | |
| 13 | 90311-KSH-900 | NUT, CLIP, 6MM | 1 | |
| 14 | 91406-KFN-850 | CLAMP, D14.5 TUBE | 1 | |
| 15 | 93903-25480 | SCREW TAPPING 5X20 | 10 | |
| 16 | 90653-KWP-F00 | CLIP, TUBE(B12.5) | 3 | |
| 17 | 95018-46320 | BAND 46 AIR/C CONN. TUBE | 1 | |
