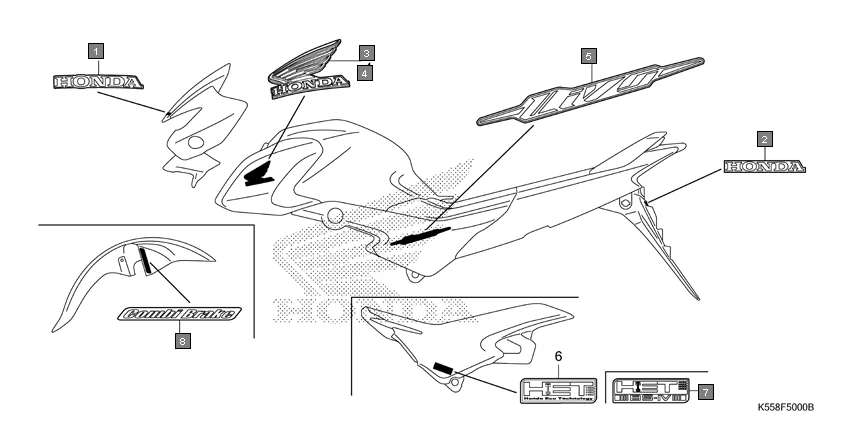

F-50 - MARK
HONDA Livo CBF110G · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86101-K55-600ZA | MARK, HONDA(65MM) *TYPE1* | 1 | |
| 2 | 86102-K55-600ZA | MARK, HONDA(65MM)*TYPE1* | 1 | |
| 3 | 86201-K55-600 | EMBLEM, R. WING(95MM) | 1 | |
| 4 | 86202-K55-600 | EMBLEM, L. WING(95MM) | 1 | |
| 5 | 86831-K55-600ZA | MARK B, SIDE COVER *TYPE1* | 2 | |
| 7 | 86833-K43-900ZA | MARK, HET BS 4 *TYPE1* (R SIDE ONLY) | 1 | |
| 8 | 86611-K43-960ZA | MARK(COMBI BRAKE) *TYPE1* (R. SIDE ONLY) | 1 | |
| 8 | 86611-K43-900ZA | MARK(COMBI BRAKE) *TYPE2* | 1 | |
| 8 | 86611-K43-900ZB | MARK(COMBI BRAKE) *TYPE1* | 1 | |
