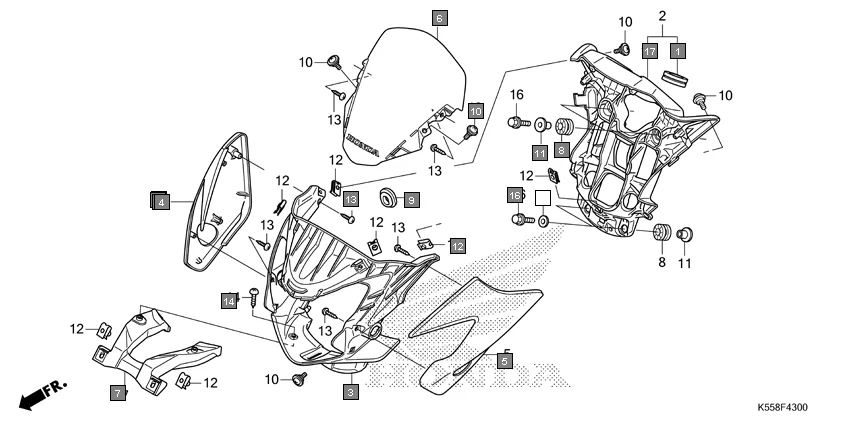

F-43 - FRONT VISOR
HONDA Livo CBF110G · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37312-K67-900 | GROMMET, COMBINATION SWITCH | 1 | |
| 3 | 61301-K55-600 | COWL, FR. | 1 | |
| 4 | 61305-K55-600ZA | GARNISH, R. FR. *YR333M* SUNSET BROWN METALLIC | 1 | |
| 4 | 61305-K55-600ZB | GARNISH, R. FR. *PB396M* ATHLETIC BULE METALLIC | 1 | |
| 4 | 61305-K55-600ZC | GARNISH, R. FR. *NH1* BLACK | 1 | |
| 4 | 61305-K55-600ZD | GARNISH, R. FR. *NHB63P* PEARL AMAZING WHITE | 1 | |
| 4 | 61305-K55-600ZE | GARNISH, R. FR. *R355M*.IMPERIAL RED METALLIC | 1 | |
| 4 | 61305-K55-600ZF | GARNISH, R. FR. *NH303M*. MAT AXIS GRAY METALLIC | 1 | |
| 5 | 61306-K55-600ZE | GARNISH, L. FR. *R355M*.IMPERIAL RED METALLIC | 1 | |
| 5 | 61306-K55-600ZF | GARNISH, L. FR. *NH303M*. MAT AXIS GRAY METALLIC | 1 | |
| 5 | 61306-K55-600ZA | GARNISH, L. FR.*YR333M* SUNSET BROWN METALLIC | 1 | |
| 5 | 61306-K55-600ZB | GARNISH, L. FR. *PB396M* ATHLETIC BULE METALLIC | 1 | |
| 5 | 61306-K55-600ZC | GARNISH, L. FR. *NH1* BLACK | 1 | |
| 5 | 61306-K55-600ZD | GARNISH, L. FR. *NHB63P* PEARL AMAZING WHITE | 1 | |
| 6 | 64100-K55-600ZA | WINDSCREEN SET(WL) *TYPE1* | 1 | |
| 7 | 64315-K55-600 | STAY, FR. NUMBER PLATE | 1 | |
| 8 | 64615-KR1-860 | RUBBER, LOWER COWL MOUNTING | 4 | |
| 9 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 1 | |
| 10 | 90101-GE0-000 | SCREW, HINGE PATCH | 5 | |
| 11 | 90310-KWS-900 | COLLAR, FR. COWL | 4 | |
| 12 | 90320-GC3-000 | NUT, SPRING, M5 | 7 | |
| 13 | 93903-24280 | SCREW, TAPPING, 4X10 | 8 | |
| 14 | 93903-25220 | SCREW, TAPPING, 5X12 | 2 | |
| 15 | 94103-06800 | WASHER, PLAIN 6 MM | 2 | |
| 16 | 95701-06022-08 | BOLT, FLANGE, 6X22 | 4 | |
| 17 | 61310-K55-950 | COVER, HEADLIGHT RR | 1 | |
