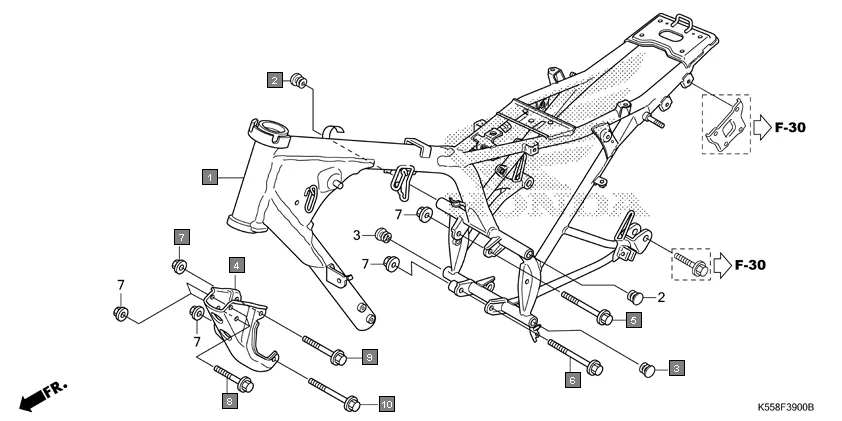

F-39 - FRAME BODY
HONDA Livo CBF110G · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-K55-970 | BODY COMP., FRAME | 1 | |
| 2 | 50315-H06-000 | CAP, PIPE END | 2 | |
| 3 | 50315-KYY-900 | CAP, PIPE END | 2 | |
| 4 | 50351-K14-910 | PLATE, FR. ENGINE HANGER | 1 | |
| 5 | 90019-399-010 | BOLT, FLANGE, 10 X 110 | 1 | |
| 6 | 90132-K14-900 | BOLT, FLANGE, 10X135 | 1 | |
| 7 | 94050-10000 | NUT, FLANGE, 10MM | 6 | |
| 8 | 95801-10065-00 | BOLT FLANGE 10X65 | 2 | |
| 9 | 95801-10085-00 | BOLT FLANGE 10X85 | 1 | |
| 10 | 95801-10095-00 | BOLT FLANGE 10X95 | 1 | |
