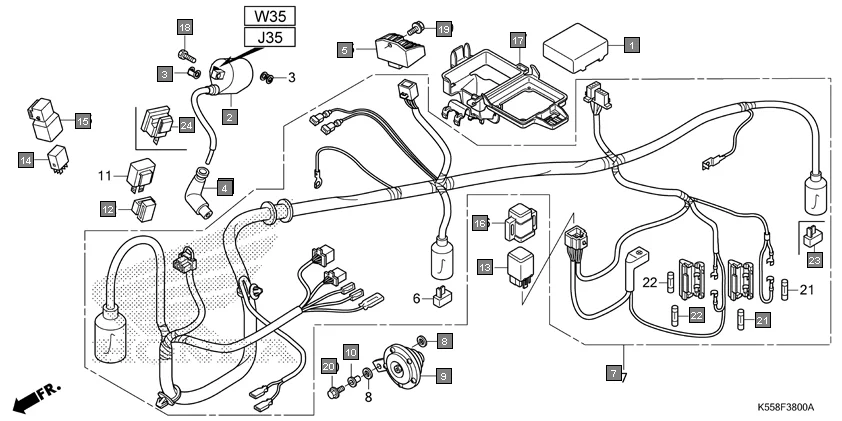

F-38 - WIRE HARNESS
HONDA Livo CBF110G · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30410-K55-951 | SPARK UNIT(SHINDENGEN) | 1 | |
| 2 | 30500-K14-901 | COIL ASSY., IGNITION(WINGS) (W35) | 1 | |
| 2 | 30500-K14-931 | COIL ASSY., IGNITION(JAGDISH)(J35) | 1 | |
| 3 | 30520-GFM-900 | SPACER, IGNITION COIL | 2 | |
| 4 | 30700-K14-901 | CAP ASSY., NOISE SUPPRESSOR (KUNAL) | 1 | |
| 4 | 30700-KTE-601 | CAP ASSY., NOISE SUPPRESSOR(ANU) | 1 | |
| 5 | 31600-KTE-D01 | RECTIFIER COMP., REGULATOR | 1 | |
| 7 | 32100-K55-950 | HARNESS, WIRE | 1 | |
| 8 | 33714-KL3-620 | RUBBER, TAIL LIGHT | 2 | |
| 9 | 38110-K14-901 | HORN COMP. | 1 | |
| 10 | 38117-KTE-D80 | COLLAR, HORN SETTING | 1 | |
| 12 | 38306-K14-931 | SUSPENSION, WINKER RELAY (STAR ENGINEERS) | 1 | |
| 13 | 38501-KPL-901 | RELAY COMP., STARTER(MULTILINK) | 1 | |
| 14 | 38502-KSP-910 | RELAY COMP., POWER (MICRO ISO 5P) | 1 | |
| 15 | 38506-K23-900 | SUSPENSION, POWER RELAY | 1 | |
| 16 | 38506-K23-910 | SUSPENSION, STARTER RELAY | 1 | |
| 17 | 50370-K14-960 | HOLDER, C.D.I. UNIT | 1 | |
| 18 | 92101-06020-4J | BOLT, HEX., 6 X 20 | 2 | |
| 19 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 21 | 98200-11000 | FUSE, A10 | 2 | |
| 22 | 98200-11500 | FUSE(15A) | 2 | |
| 23 | 31700-124-008 | RECTIFIER ASSY., SILICON(SHINDENGEN) | 1 | |
| 24 | 38301-K63-D21 | RELAY COMP., WINKER (STAR ENGINEERS) | 1 | |
